An automatic coating line is often evaluated by its spray guns, robots, or coating booth. However, spraying is only one stage of the production process. Even with well-configured spray equipment, poor pretreatment, insufficient drying, incorrect curing conditions, or an unsuitable conveyor system can reduce coating quality and production efficiency.

A reliable automatic coating line depends on how all these stages work together. The equipment must be designed around the workpieces, coating requirements, and production targets—not selected as separate machines.

Pretreatment: Coating Quality Starts Before Spraying

The condition of the workpiece surface directly affects coating adhesion and durability. Oil, rust, dust, and other contaminants can cause defects even when the spraying process is properly controlled.

The pretreatment process should match the material, incoming surface condition, and required coating performance. Spray pretreatment, immersion treatment, and shot blasting serve different purposes and are not interchangeable in every application.

For example, fabricated steel parts with heavy rust or scale may require shot blasting, while metal components with oil contamination may need a suitable cleaning and chemical pretreatment process.

If pretreatment is inadequate, increasing spray automation will not solve the underlying problem.

Drying: Moisture Must Be Controlled Before Coating

After wet pretreatment, workpieces need to be dried sufficiently before entering the next process. Residual moisture can interfere with powder application or contribute to defects during subsequent heating. For liquid coating, the required surface condition depends on the specific coating system.

Drying capacity must match the pretreatment output, workpiece geometry, and production speed. Deep cavities, overlapping structures, and complex profiles may retain moisture longer than flat surfaces.

If the conveyor moves parts into the spray area before they are adequately dry, the entire line may be affected. A drying oven that cannot keep pace with production can also become a bottleneck, even when the spray equipment has sufficient capacity.

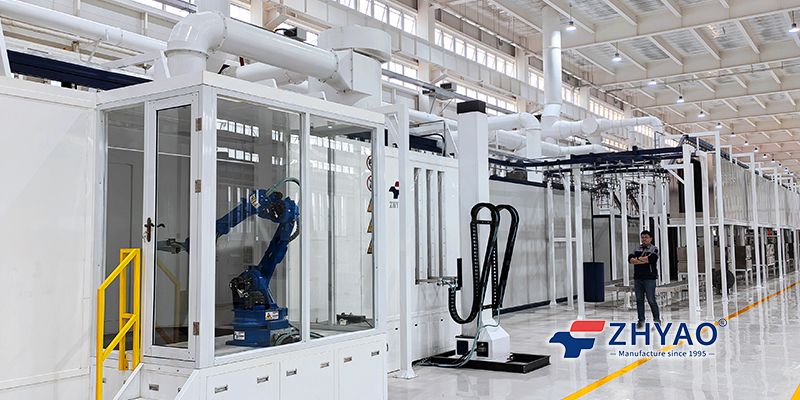

Spraying: Automation Must Match the Workpiece

Automatic spray guns and robots can improve repeatability and reduce dependence on manual operation, but their performance depends on part geometry and presentation.

Large, flat surfaces are generally easier to coat consistently than deep recesses, narrow gaps, internal corners, and complex welded structures. Gun positioning, spray angle, distance, workpiece spacing, and conveyor speed all affect coverage.

For powder coating, electrostatic conditions and the Faraday cage effect can make it difficult to deposit powder inside recessed areas. Some products still require manual touch-up or a combination of automatic and manual spraying.

The right automation level is therefore determined by the product mix and required coverage—not simply by the number of spray guns or the use of robots.

Curing Oven Settings Must Match the Coating Requirements

After spraying, the coating must complete the required curing or film-forming process. For powder coating, the specified curing conditions generally refer to the workpiece metal temperature and the time maintained at that temperature, rather than oven air temperature alone.

A heavily loaded workpiece may heat up more slowly than a thin sheet-metal component. If the conveyor speed is too high or the oven cannot provide the required thermal conditions, the coating may be under-cured. Excessive heating can also damage certain coating systems or substrates.

Oven length, heating capacity, airflow, loading density, and conveyor speed must therefore be considered together.

A spray booth that can process more parts per hour will not increase actual production if the curing oven cannot handle the same output.

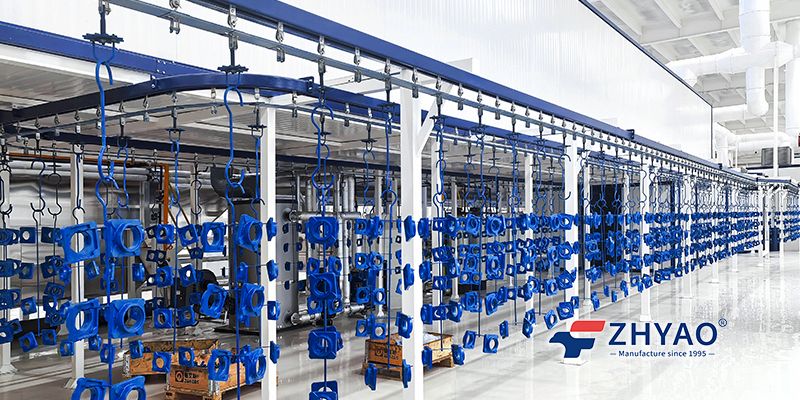

Conveyor System: Every Stage Must Maintain the Required Flow

The conveyor connects pretreatment, drying, spraying, and curing into one production process. Its design affects how many parts can be processed, how consistently they are presented to spray equipment, and how long they remain in each process stage.

Conveyor speed and hanger spacing determine the available processing time and workpiece density. Part dimensions and weight influence the required load capacity, hanger arrangement, and conveyor configuration.

For example, long steel profiles may require greater spacing to prevent contact and maintain spray access. Heavy components may need a different conveying arrangement from lightweight sheet-metal parts.

If the conveyor runs faster than the curing process allows, or if workpieces are loaded too closely for effective spraying, the line may fail to achieve its intended output or coating consistency.

System Matching Matters More Than Individual Equipment Capacity

These stages cannot be sized independently without considering their effect on the complete line.

A practical design review should examine three relationships:

• Process compatibility: Can each stage deliver workpieces in the condition required by the next stage?

• Capacity balance: Can pretreatment, drying, spraying, and curing maintain the required production rate?

• Product compatibility: Can the system accommodate the actual dimensions, weight, geometry, and coating requirements of the workpieces?

For example, a line designed for small, lightweight parts may not be suitable for large fabricated structures, even if both use powder coating. The larger parts may require different pretreatment methods, longer heating times, modified hanger arrangements, and a different conveyor layout.

The objective is not to maximize the capacity of each machine separately. It is to ensure that the complete system can meet the required quality and output under actual production conditions.

Design the Complete Coating Line Around the Production Requirements

Before selecting equipment, manufacturers should clarify the workpiece material, dimensions, weight, surface condition, coating type, required finish, daily output, and available factory space. These details help determine the process sequence, equipment capacity, automation level, and conveyor arrangement.

ZHYAO provides customized coating line solutions based on actual production requirements, covering system design and the coordination of pretreatment, drying, spraying, curing, and conveying equipment. The focus is on matching the complete line to the customer's products and production process rather than treating each machine as an independent purchase.

If you are planning a new automatic coating line or upgrading an existing one, a complete system assessment is a practical starting point for developing a suitable solution.

FAQ

1. Can a high-performance spray booth compensate for poor pretreatment?

No. Spray equipment cannot remove all surface contaminants or correct an unsuitable pretreatment process. Surface preparation must meet the requirements of the coating system.

2. How can I tell whether my coating line has a capacity mismatch?

Look for recurring bottlenecks, inconsistent workpiece flow, inadequate drying, insufficient curing time, or spray equipment waiting for parts. Actual production rates and process conditions should be reviewed across the complete line.

3. What information is needed to design an automatic coating line?

The main information includes workpiece material, dimensions, weight, surface condition, coating requirements, target production output, automation expectations, and available factory space. These details help determine the process and equipment configuration.
