A Complete Guide to Powder Coating Equipment for Efficient Industrial Production

Powder coating has become one of the most widely used finishing technologies in modern manufacturing. Compared with conventional liquid painting, it offers excellent durability, high material utilization, and lower VOC emissions. However, achieving a stable, high-quality finish depends not only on the powder itself but also on selecting the right powder coating equipment.

Whether you are planning a new powder coating line or upgrading an existing facility, understanding the role of each piece of equipment will help improve coating quality, production efficiency, and operating costs.

This guide explains the essential equipment required for a complete powder coating process and how to choose the right configuration for your production needs.

Powder Coating Process Overview

A standard industrial powder coating process typically includes the following steps:

Surface pretreatment

Drying

Powder application

Powder curing

Cooling

Inspection and packaging

Each stage requires specialized equipment designed to ensure consistent product quality and production efficiency.

1. Pretreatment System

Pretreatment is the foundation of every successful powder coating project. Even the most advanced spray equipment cannot compensate for poor surface preparation.

The pretreatment process removes contaminants such as:

Oil

Grease

Dust

Rust

Oxidation

Metal residues

Depending on the workpiece material and coating requirements, pretreatment may include:

Degreasing

Water rinsing

Acid pickling

Phosphating

Zirconium or nanoceramic conversion coating

DI water rinse

Common Pretreatment Equipment

Spray pretreatment tunnel

Dip tank pretreatment system

Water treatment equipment

Chemical dosing system

Proper pretreatment significantly improves coating adhesion, corrosion resistance, and coating lifespan.

2. Drying Oven

After pretreatment, moisture remaining on the workpiece must be completely removed before powder application.

A drying oven ensures:

Dry surfaces

Stable powder adhesion

Reduced coating defects

Improved production consistency

Common heating methods include:

Electric heating

Natural gas heating

LPG heating

Diesel heating

The appropriate heating method depends on local energy prices, plant utilities, and production capacity.

3. Powder Spray Booth

The powder spray booth is one of the most important pieces of equipment in a powder coating line.

Its functions include:

Containing airborne powder

Recovering oversprayed powder

Maintaining a clean spraying environment

Improving powder utilization

Types of Powder Booths

Manual Powder Booth

Suitable for:

Small batch production

Multiple color changes

Custom products

Advantages:

Lower investment

Flexible operation

Automatic Powder Booth

Recommended for:

High-volume production

Continuous manufacturing

Stable product dimensions

Advantages:

Higher efficiency

Better coating consistency

Lower labor costs

Modern powder booths often feature quick color change designs and automatic cleaning systems to reduce production downtime.

4. Powder Coating Spray Equipment

The spray equipment charges powder particles electrostatically, allowing them to adhere evenly to grounded workpieces.

Typical spray equipment includes:

Electrostatic powder spray guns

Automatic spray guns

Manual spray guns

Reciprocators

Robot spraying systems

Powder feed center

Powder hopper

Powder pumps

Automatic systems can accurately control:

Powder output

Gun movement

Spray distance

Coating thickness

This helps improve coating uniformity while reducing powder waste.

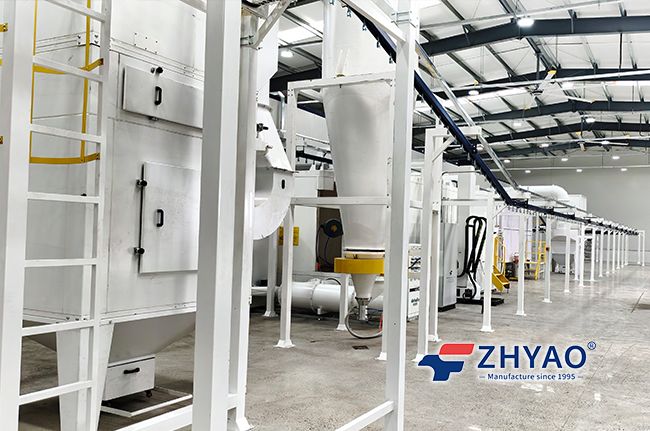

5. Powder Recovery System

Not all sprayed powder adheres to the workpiece.

A powder recovery system collects oversprayed powder for reuse, reducing operating costs and improving material utilization.

Common recovery systems include:

Cyclone Recovery

Advantages:

High recovery efficiency

Suitable for automatic production

Easy maintenance

Filter Cartridge Recovery

Advantages:

Compact structure

Good filtration performance

Suitable for medium production volumes

Many modern systems combine cyclone separation with cartridge filtration to maximize powder recovery while maintaining clean exhaust air.

6. Curing Oven

After powder application, coated parts enter the curing oven.

During curing:

Powder melts

Flows evenly

Cross-links chemically

Forms a durable protective coating

The curing oven directly affects:

Surface appearance

Gloss

Hardness

Adhesion

Impact resistance

Corrosion resistance

Common Heating Options

Electric

Natural gas

LPG

Diesel

Modern curing ovens typically feature:

Hot air circulation

Multi-zone temperature control

Automatic temperature monitoring

Energy-saving insulation

Uniform temperature distribution is critical for consistent coating quality.

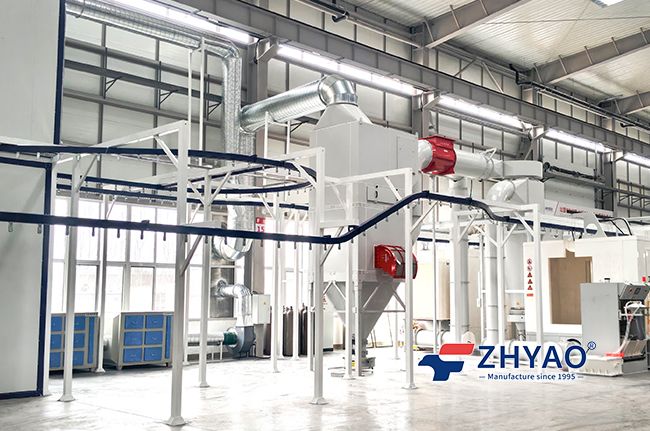

7. Conveyor System

The conveyor connects every stage of the powder coating line into one continuous production process.

Common conveyor types include:

Overhead chain conveyor

Power and free conveyor

Floor conveyor

Skid conveyor

The conveyor speed determines production capacity and must be coordinated with pretreatment time, spraying speed, and curing time.

8. Cooling Section

After curing, coated products require controlled cooling before handling or packaging.

Cooling systems may include:

Natural cooling

Forced air cooling

Cooling tunnel

Proper cooling prevents surface damage and allows coatings to reach full hardness.

9. Electrical Control System

Modern powder coating lines rely on intelligent control systems to improve automation and production stability.

Typical functions include:

PLC control

Touchscreen HMI

Temperature monitoring

Conveyor speed adjustment

Alarm system

Data monitoring

Energy management

Automation helps reduce manual intervention while improving production consistency.

Optional Equipment

Depending on production requirements, additional equipment may be integrated into the powder coating line.

Examples include:

Automatic loading and unloading systems

Vision inspection systems

Coating thickness measurement equipment

Powder color change stations

Air compressor systems

Dust collection systems

Environmental protection equipment

These options can further improve efficiency, quality control, and workplace safety.

How to Choose the Right Powder Coating Equipment

The ideal equipment configuration depends on several production factors rather than simply selecting the largest or most automated system.

Before investing, manufacturers should evaluate:

Product dimensions and weight

Material type

Annual production volume

Available factory space

Number of powder colors

Required coating quality

Local energy costs

Future production expansion plans

A customized solution often delivers better long-term value than a standardized production line.

Complete Powder Coating Equipment Flow

A typical automatic powder coating line consists of:

Loading → Pretreatment → Drying Oven → Powder Spray Booth → Powder Recovery System → Curing Oven → Cooling → Unloading

Each system works together to achieve efficient, reliable, and consistent coating performance.

Why Work with an Experienced Powder Coating Equipment Manufacturer

Selecting the right equipment supplier is just as important as selecting the equipment itself.

An experienced manufacturer can provide:

Customized production line design

Equipment manufacturing

Factory layout planning

Installation and commissioning

Operator training

Technical support

Spare parts supply

Future production line upgrades

A well-designed powder coating system not only improves coating quality but also reduces energy consumption, minimizes maintenance, and increases long-term production efficiency.

Conclusion

Powder coating is much more than a spray booth and a curing oven. A complete powder coating line includes pretreatment equipment, drying systems, powder application equipment, recovery systems, curing ovens, conveyors, cooling sections, and intelligent controls working together as an integrated process.

Understanding the function of each piece of equipment allows manufacturers to choose a solution that matches their production goals, product requirements, and budget. Whether producing metal furniture, automotive components, construction materials, appliances, or industrial parts, investing in the right powder coating equipment lays the foundation for reliable product quality and efficient manufacturing.
