When manufacturers plan to build a new powder coating facility, one of the first questions they usually ask is: How much does a powder coating production line cost?

The answer is not a fixed number. A powder coating production line is a customized industrial system, and its total investment depends on multiple factors, including production requirements, workpiece characteristics, automation level, factory conditions, and equipment configuration.

Understanding these factors helps manufacturers make better decisions and choose a coating solution that matches their actual production needs.

1. Production Capacity and Output Requirements

Production capacity is one of the most important factors affecting the cost of a powder coating production line.

A small factory producing several hundred workpieces per day may only need a compact or semi-automatic system. However, large manufacturers with continuous production requirements may require a fully automatic powder coating line with higher processing capacity.

The production capacity affects:

Conveyor speed

Pretreatment length

Oven size

Number of spray guns

Recovery system capacity

Automation equipment

For example, a high-volume production line usually requires longer pretreatment tunnels, larger curing ovens, and more automatic spraying equipment, which increases the overall investment.

2. Workpiece Size, Material, and Product Characteristics

The products being coated directly influence the design and cost of the coating system.

Different workpieces require different equipment configurations.

Important factors include:

Product Dimensions

Large products require:

Larger spray booths

Bigger curing ovens

Higher conveyor clearance

More factory space

For example, coating aluminum profiles, steel structures, fences, or automotive components may require completely different line designs.

Product Material

Common powder-coated materials include:

Mild steel

Stainless steel

Aluminum

Galvanized steel

Different materials may require different pretreatment processes to achieve proper coating adhesion and corrosion resistance.

Product Shape

Complex structures with corners, holes, or irregular surfaces may require:

Additional spray guns

Reciprocators

Manual touch-up stations

Robot spraying systems

These additional requirements can affect the equipment investment.

3. Level of Automation

The automation level has a significant impact on the powder coating production line cost.

Generally, powder coating systems can be divided into:

Manual Powder Coating System

Suitable for:

Small production volume

Multiple product types

Flexible production

Main advantages:

Lower initial investment

Simple operation

Suitable for customized products

Semi-Automatic Powder Coating Line

A combination of automatic and manual operations.

Common features:

Automatic conveyor

Automatic curing oven

Manual powder spraying

This solution provides a balance between investment and production efficiency.

Fully Automatic Powder Coating Line

Designed for:

Large-scale production

Stable output

Consistent coating quality

It may include:

Automatic pretreatment

Automatic powder spraying

Automatic powder recovery

Automatic control system

Automatic loading and unloading

Higher automation reduces labor requirements and improves production consistency but requires a higher initial investment.

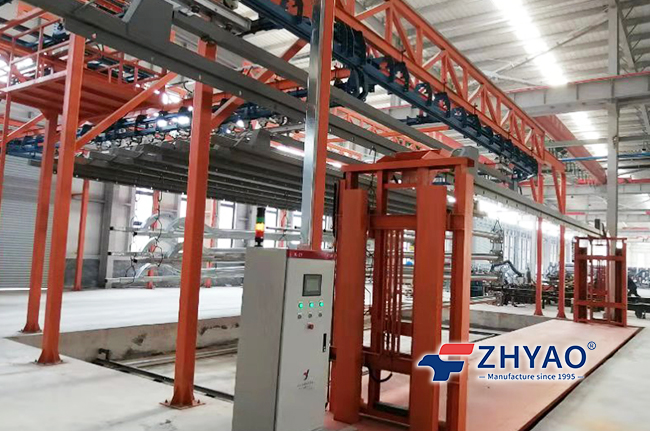

4. Pretreatment System Configuration

Pretreatment is an essential part of a complete powder coating line, and its configuration can significantly influence the total cost.

Common pretreatment options include:

Spray pretreatment tunnel

Dip pretreatment system

Manual cleaning systems

The cost depends on:

Number of treatment stages

Tank size or tunnel length

Chemical process requirements

Water treatment system

Heating method

For products requiring high corrosion resistance, such as automotive parts or outdoor metal structures, more advanced pretreatment processes are usually required.

5. Powder Spray Booth and Recovery System

The powder spray section is another important cost factor.

A basic powder coating system may use manual spray booths, while industrial production lines often require automatic spray booths with recovery systems.

Factors affecting cost include:

Booth size

Number of spray guns

Automatic gun movement system

Powder recovery method

Color change requirements

Modern recovery systems, such as cyclone separators and cartridge filters, help improve powder utilization and reduce powder waste.

6. Curing Oven Design and Energy Consumption

The curing oven is one of the largest components in a powder coating production line.

Its cost depends on:

Oven size

Heating method

Temperature control requirements

Insulation structure

Production speed

Common heating options include:

Natural gas

LPG

Electricity

Diesel

A well-designed curing oven should provide:

Uniform temperature distribution

Stable curing performance

Efficient energy consumption

Although energy-saving designs may increase initial investment, they can reduce long-term operating costs.

7. Conveyor System Design

The conveyor system connects all processes together and directly affects production efficiency.

The design depends on:

Product weight

Product dimensions

Production speed

Factory layout

Common conveyor systems include:

Overhead chain conveyors

Power and free conveyors

Floor conveyors

Heavy products require stronger conveyor structures, while high-speed production requires more precise control systems.

8. Factory Layout and Installation Conditions

The available factory space also affects the final powder coating line design.

Before designing a system, manufacturers need to consider:

Factory length and width

Ceiling height

Existing production equipment

Material flow

Loading and unloading areas

A well-planned layout can reduce unnecessary investment and improve production efficiency.

For factories with limited space, a customized compact powder coating line may be a better solution than a standard large system.

9. Additional Equipment and Custom Requirements

Many manufacturers add optional equipment based on their production goals.

Examples include:

Automatic loading and unloading systems

Powder color change systems

Robot spraying systems

Environmental protection equipment

Online coating thickness inspection

Intelligent production monitoring systems

These additional functions improve automation and quality control but will also influence the total project cost.

How to Control Powder Coating Line Investment

Choosing a powder coating production line is not simply about selecting the cheapest equipment. A suitable system should balance:

Initial investment

Production efficiency

Coating quality

Energy consumption

Maintenance requirements

Future expansion

Manufacturers can optimize investment by:

Choosing the right automation level

Designing equipment based on actual production needs

Avoiding unnecessary functions

Planning future capacity requirements

A properly designed coating system can provide better long-term value.

Customized Powder Coating Production Line Solutions

Because every factory has different products, production capacity, and space conditions, powder coating production lines are usually designed according to specific requirements.

ZHYAO provides customized powder coating solutions based on:

Product dimensions and materials

Production capacity

Factory layout

Coating requirements

Automation expectations

From equipment design and manufacturing to installation and commissioning, a complete solution helps manufacturers build an efficient and reliable powder coating system.

Conclusion

The cost of a powder coating production line is influenced by many factors, including production capacity, product size, automation level, pretreatment requirements, spraying system, curing oven, conveyor design, and additional customization.

Instead of focusing only on the initial price, manufacturers should consider the overall performance, operating efficiency, and long-term production value of the system.

A properly designed powder coating production line can help businesses improve coating quality, reduce production costs, and achieve stable industrial manufacturing.
