An industrial powder coating system should be designed around the products being coated, the required production output, and the conditions inside the factory. The equipment configuration that works for small metal brackets may not be suitable for large steel structures, aluminum profiles, or heavy machinery components.

The main design decisions involve workpiece dimensions and weight, production volume, product variety, color-change frequency, curing requirements, and available factory space. These factors determine how the equipment should be arranged and how each process must work with the others.

Understanding these conditions before requesting a quotation helps prevent unsuitable equipment configurations, production bottlenecks, and unnecessary investment.

Workpiece Dimensions and Weight Determine Equipment Layout

The size and weight of the workpieces are among the first factors to consider when designing a powder coating system.

Small, lightweight components can often be processed on a compact overhead conveyor system with closely spaced hangers. Large or heavy components may require wider conveying clearances, stronger load-bearing arrangements, or a floor-based conveying system, depending on their dimensions and handling requirements.

Workpiece geometry matters as much as overall size. Deep recesses, narrow gaps, welded joints, and complex profiles can affect powder accessibility and spray gun positioning. Parts with complicated structures may require additional manual touch-up even when automatic spray guns are used.

Hanger design also influences coating results. If parts are suspended too closely together, they may obstruct one another during spraying. Poor hanging positions can leave difficult areas insufficiently coated or make parts unstable during transportation.

Before selecting the conveyor and spray booth, the design team should understand the maximum workpiece dimensions, individual weight, hanging orientation, and loading method. Sample drawings or photographs are particularly useful when products have irregular shapes.

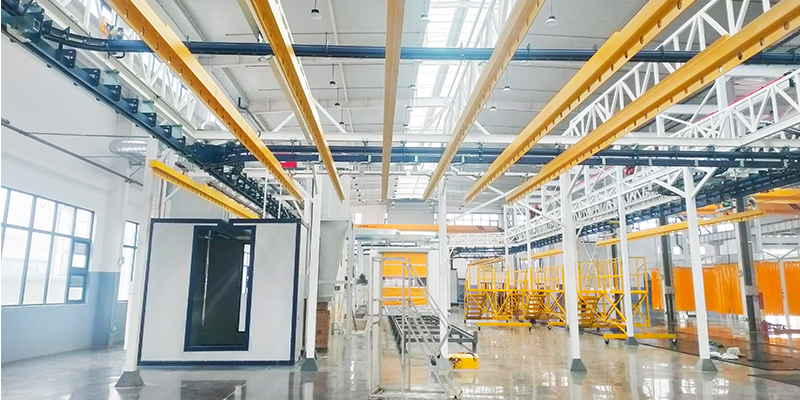

Production Output Determines Conveyor Speed and Process Capacity

A powder coating line must support the required output without forcing every process to operate at an unsuitable speed.

For a continuous conveyor line, the required production rate helps determine conveyor speed and hanger spacing. These parameters must also accommodate spraying, oven residence time, loading, unloading, and other process requirements.

For example, increasing conveyor speed may raise the number of parts transported per hour, but it also reduces the time available for spraying within a fixed spray zone. If the curing oven remains unchanged, the available heating and curing time may also become insufficient.

The relationship between conveyor speed and oven length can be expressed simply:

Required heated-zone length = conveyor speed × required residence time.

This is a preliminary sizing relationship, not a complete oven-design calculation. Actual design must account for the coating manufacturer's curing requirements, workpiece thermal mass, oven temperature distribution, and the time needed for the workpiece itself to reach the required metal temperature.

Production planning should also distinguish between theoretical line capacity and actual output. Product changes, loading delays, maintenance, and quality inspections can reduce the number of finished parts produced during a shift.

When production volumes vary significantly, the design may need accumulation areas, adjustable conveyor speeds, or separate manual workstations. The appropriate arrangement depends on the production schedule and the degree of automation required.

Product Variety and Color Changes Influence the Spray Booth

The number of product types and the frequency of color changes can significantly affect powder coating system configuration.

A factory producing large quantities of one color has different requirements from a factory handling many colors in small batches. In the first case, a production-oriented booth and recovery arrangement may be appropriate. In the second, color-change time and powder contamination control become more important.

For frequent color changes, the booth structure, powder recovery method, and cleaning accessibility should be evaluated together. A system that is difficult to clean may create excessive downtime between production batches.

The choice between a quick-change booth, a dedicated booth for each color, or another arrangement depends on the number of colors, batch sizes, powder types, and acceptable changeover time.

Automatic spraying is suitable for repeatable production when the workpiece presentation and spray paths are consistent. However, automatic guns do not eliminate every manual operation. Complex geometries, recessed areas, and product variations may still require manual touch-up.

For mixed-product production, the system should be evaluated using representative workpieces rather than only the easiest product to coat. This helps determine whether the proposed booth, gun arrangement, and conveyor layout can accommodate the actual product range.

Curing Requirements Must Match the Workpiece and Powder

The curing oven should be designed according to the powder coating manufacturer's specified curing conditions and the thermal behavior of the workpieces.

A common mistake is to select an oven based only on its air temperature or external dimensions. The temperature of the circulating air is not the same as the temperature of the workpiece. Thick steel components, thin sheet-metal parts, and aluminum profiles heat at different rates.

If the workpiece does not reach the required metal temperature for the specified duration, the coating may not cure adequately. Excessive thermal exposure can also be unsuitable for certain coating systems or heat-sensitive components.

Workpiece weight, wall thickness, loading density, conveyor speed, and production throughput therefore need to be considered together.

For mixed products, the design team should identify the most demanding heating conditions and determine whether the products can share one curing oven within an acceptable process window. If their curing requirements differ substantially, production scheduling or separate process arrangements may be necessary.

The heating method—such as gas-fired or electric heating—should also be assessed against available energy supplies, operating conditions, temperature-control requirements, and local installation constraints.

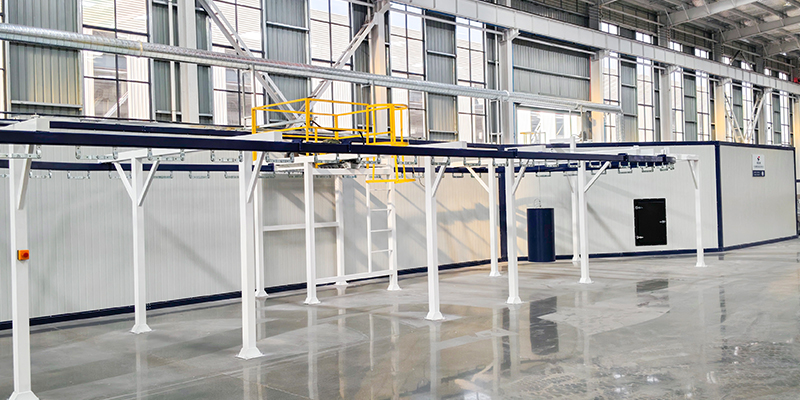

Factory Space and Layout Affect the Overall Configuration

Even when the process requirements are clear, the available building can limit the practical design of an industrial powder coating system.

A long factory may accommodate a relatively straight conveyor layout, while a shorter building may require a U-shaped or other space-conscious arrangement. However, the shortest layout is not always the most practical. Loading and unloading areas, maintenance access, operator movement, and safe material handling must remain workable.

Ceiling height can influence overhead conveyor routing and the installation of large equipment. Floor loading capacity and access routes may also matter when handling heavy workpieces or installing large ovens.

The design must allow sufficient space for equipment maintenance and routine cleaning, particularly around spray booths, powder recovery equipment, and filters. Equipment should not be placed so tightly that normal maintenance becomes difficult.

Energy supply is another consideration. The availability and capacity of electricity or gas, ventilation requirements, and local safety regulations can influence equipment selection and installation planning.

A factory layout drawing with building dimensions, column positions, door locations, and available utility connections gives the equipment supplier a much more reliable basis for proposing a workable arrangement.

What Information Should Be Prepared Before Requesting a Quotation?

A useful quotation starts with accurate production information, not simply a request for a complete powder coating line.

Prepare the following details where available:

• Workpieces: Material, maximum dimensions, individual weight, shape, and photographs or drawings.

• Production targets: Required output per hour or shift, working hours, and expected product mix.

• Coating requirements: Powder type, required coating performance, and specified curing conditions.

• Color changes: Number of colors, typical batch sizes, and acceptable changeover time.

• Factory conditions: Available floor area, building height, layout drawings, and electricity or gas supply.

• Automation requirements: Expected level of automatic spraying, manual touch-up, loading, and unloading.

If several products will share the same line, provide information for the full product range. The largest part may determine the required clearance, while the heaviest part may determine the conveying arrangement. A different product may create the greatest challenge for spray coverage or curing.

Where the production requirements are still being developed, identify the expected future product range and output. This allows the initial design to consider realistic expansion needs without automatically installing unnecessary capacity.

FAQ

1. Can different products share one industrial powder coating system?

Yes, provided their dimensions, weights, coating requirements, and production conditions are compatible with the system. Product changeovers, hanger arrangements, spray coverage, and curing requirements should be evaluated before confirming the configuration.

2. Does higher production output always require more automatic spray guns?

No. Required gun quantity and arrangement depend on workpiece geometry, conveyor speed, spray coverage, powder characteristics, and the desired coating result. Increasing the number of guns alone does not guarantee higher effective output.

3. What is the most important information when requesting a powder coating line quotation?

Start with workpiece dimensions and weight, target output, coating and curing requirements, product variety, and factory layout. These details provide the basis for evaluating the conveying system, spray booth, curing oven, and overall line configuration.
