When manufacturers search for the price of a powder coating line, it is difficult to give one fixed number. Two factories may both need a “powder coating line,” but their final equipment configurations and investment levels can be completely different.

The price is not determined by the powder booth or curing oven alone. Pretreatment, conveyor design, production capacity, automation, powder recovery, oven size, factory layout, and even the type of workpieces can all change the overall cost.

For a manufacturer planning a new line, understanding these factors is more useful than comparing equipment quotations by total price alone.

1. Workpiece Size and Weight

The first factor is the product itself.

A coating line for small hardware components requires very different equipment from a line designed for large steel frames, electrical cabinets, agricultural machinery, or automotive parts.

Workpiece dimensions affect:

• Powder booth size

• Pretreatment tank or spray chamber dimensions

• Drying oven size

• Curing oven dimensions

• Conveyor width and load capacity

• Spray gun arrangement

• Hanging system

Heavy workpieces may require a stronger conveyor and specially designed hooks or carriers. Larger products also require more internal space in the oven and booth.

Therefore, increasing workpiece size does not simply mean making one machine larger. Several parts of the production line may need to be upgraded at the same time.

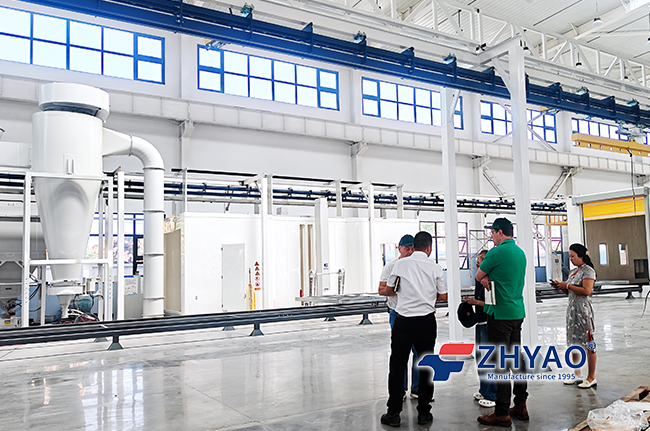

        （Gaocheng Kakir Agricultural Machinery Parts Powder Coating Line Project）

2. Required Production Capacity

Production output is another major cost driver.

A line designed for a few hundred pieces per day will generally have different specifications from a high-volume line running continuously across multiple shifts.

Capacity is normally evaluated using information such as:

Pieces per hour × working hours × production days = required production output

However, the calculation also needs to consider workpiece dimensions and hanging density.

For example, a small component can allow many pieces to be loaded onto one conveyor section, while a large cabinet may occupy considerably more conveyor space.

Higher production requirements can lead to larger ovens, faster conveyors, more spray guns, additional automatic spraying equipment, and higher-capacity pretreatment and recovery systems.

3. Pretreatment Method

Pretreatment can represent a significant part of the investment, especially for complete industrial coating lines.

Different workpieces may require different surface preparation methods.

Common options include:

• Spray pretreatment

• Immersion pretreatment

• Shot blasting

A spray pretreatment system may contain multiple treatment stages, pumps, tanks, nozzles, filtration equipment, water circulation systems, and chemical dosing equipment.

An immersion system has a different equipment structure and is often considered for workpieces that are difficult to process effectively with spray treatment.

For certain steel products, shot blasting may be more appropriate than chemical pretreatment.

The required surface preparation process should therefore be determined by the material, surface condition, corrosion-resistance requirements, and production process—not simply by choosing the cheapest option.

4. Powder Coating Booth and Recovery System

The booth configuration also affects the overall price.

A basic manual booth is relatively simple. A production line with automatic powder spraying requires additional equipment such as automatic guns, reciprocators, powder pumps, control systems, and powder supply equipment.

The recovery method also matters.

Common configurations include:

• Cartridge filter recovery

• Cyclone recovery

• Combined recovery systems

A factory producing one color continuously may have different recovery requirements from a manufacturer changing colors frequently.

If color changes are frequent, the design needs to consider cleaning time, powder contamination, recovery structure, and ease of maintenance.

5. Curing Oven Size and Heating Method

The curing oven is usually one of the major pieces of equipment in a powder coating line.

Its cost depends on:

• Workpiece dimensions

• Required production capacity

• Conveyor speed

• Effective heating length

• Heating temperature

• Insulation structure

• Heating method

• Fuel or energy source

A larger workpiece requires a larger oven opening and internal volume. Higher production capacity may require a longer heating zone or higher throughput.

The heating source can also affect operating costs and equipment configuration. Depending on local energy conditions and project requirements, ovens may use gas, electricity, diesel, or other suitable heating arrangements.

The important point is that oven size should be calculated from the actual workpiece temperature and curing requirements rather than simply selecting an oven based on external dimensions.

6. Conveyor System

The conveyor is sometimes overlooked when comparing quotations, but it has an important influence on both price and production performance.

Different products may require different conveyor solutions, including overhead conveyors, floor conveyors, or accumulation systems.

The conveyor needs to carry the workpiece safely while maintaining the required production speed.

Its design depends on:

• Maximum workpiece weight

• Workpiece dimensions

• Hanging method

• Conveyor speed

• Line layout

• Required accumulation

• Production capacity

A heavier-duty conveyor can increase equipment cost, but using an undersized conveyor can create much more serious production and maintenance problems.

7. Level of Automation

Automation is one of the clearest differences between powder coating line quotations.

A relatively simple system may use manual loading, manual spraying, and manual unloading.

A more automated system may include:

• Automatic loading

• Automatic powder spraying

• Reciprocators

• Powder supply systems

• Automatic conveyor control

• Automatic unloading

• Production monitoring

• Automatic color-change functions

Automation can reduce manual operations and improve process repeatability, but it also increases the initial equipment investment.

For this reason, manufacturers should not automatically choose the highest level of automation. The better approach is to determine which operations actually create labor or quality bottlenecks.

8. Factory Layout and Installation Conditions

Two customers with identical workpieces can still receive different quotations because their factories have different layouts.

A long factory building may allow a straight powder coating line. A shorter building may require a U-shaped configuration or other space-saving arrangement.

Existing columns, doors, ceiling height, ventilation routes, gas supply, electrical capacity, and equipment access can also influence the engineering design.

A customized layout may therefore require additional structural or installation work compared with a standard configuration.

9. Number of Colors and Color-Change Frequency

Color requirements can have a surprisingly large effect on the powder coating system.

If the production line mainly runs one color, the powder recovery and supply system can be designed for continuous operation.

If the factory changes colors frequently, the system needs to place greater emphasis on cleaning efficiency and contamination control.

This may influence:

• Powder booth structure

• Recovery equipment

• Powder hoses

• Spray guns

• Powder center

• Cleaning procedures

• Automatic color-change equipment

For high-mix, low-volume production, rapid color change can sometimes be more important than maximum spraying capacity.

10. Electrical Control and Safety Configuration

A complete powder coating line also requires an electrical control system.

Depending on the level of automation, this may include PLC control, touch-screen operation, temperature control, conveyor monitoring, burner control, fan control, interlocks, alarms, and emergency-stop systems.

Safety-related equipment also needs to be considered, particularly around powder spraying, ventilation, heating systems, and electrical equipment.

A quotation that excludes important control or safety components may initially look cheaper but result in additional costs during installation.

11. Customization and Engineering Requirements

Powder coating lines are industrial production systems, so customization is often unavoidable.

The equipment may need to be adapted to:

• Special workpiece shapes

• Existing factory structures

• Limited installation space

• Special production processes

• Local electrical standards

• Local heating conditions

• Specific coating requirements

The more customized the system, the more engineering work may be required before manufacturing begins.

This is why comparing suppliers only by equipment price can be misleading. Engineering design, equipment integration, installation, commissioning, and after-sales support can also form part of the total project cost.

What Is Included in the Powder Coating Line Price?

Before comparing quotations, manufacturers should check exactly what is included.

A complete quotation may contain:

1. Pretreatment system

2. Drying oven

3. Powder coating booth

4. Automatic and manual spray equipment

5. Powder recovery system

6. Curing oven

7. Conveyor system

8. Electrical control system

9. Ventilation equipment

10. Installation and commissioning

But different suppliers may use different quotation scopes.

For example, one quotation may include installation while another covers equipment manufacturing only. One may include the powder recovery system, while another lists it as an optional item.

Therefore, the total project cost is more meaningful than the equipment price shown on the first page of a quotation.

How to Reduce the Initial Investment Without Sacrificing Production Quality

Reducing the price does not necessarily mean removing major equipment.

A better approach is to optimize the system according to actual production requirements.

For example:

• Select the automation level according to production volume.

• Avoid oversizing ovens and conveyors without a production reason.

• Choose the pretreatment process according to the substrate.

• Match the recovery system to powder usage and color changes.

• Optimize the line layout before equipment manufacturing.

• Leave unnecessary optional automation for a later upgrade.

• Consider long-term energy and maintenance costs.

A cheaper system with poor process matching may cost more over several years through higher powder consumption, energy use, downtime, and maintenance.

What Information Does a Manufacturer Need to Calculate the Price?

For a preliminary powder coating line quotation, the following information is usually useful:

Factory Dimensions

Production Output: 1 day = 8 hours, 1 month = 30 days

Material: Steel, aluminum, galvanized metal, etc.

Workpiece Dimensions: Length × Width × Height

Workpiece Weight

Color Change Demand: Number of colors and change frequency

Coating Requirements: Powder type, target coating thickness, appearance requirements

Automation Requirements: Manual, semi-automatic, or automatic production

The more complete the production information, the more accurately the line configuration and project cost can be evaluated.

Conclusion

The price of a powder coating line is determined by the complete production system, not by one individual machine.

Workpiece size, production capacity, pretreatment method, powder booth, recovery system, curing oven, conveyor, automation level, factory layout, color changes, control system, and engineering requirements can all influence the final investment.

For manufacturers comparing powder coating line suppliers, the most useful question is not simply “How much does the line cost?” but “What equipment and engineering services are included at this price, and does the configuration match our production requirements?”

A properly designed line should balance initial investment with coating quality, production capacity, energy consumption, maintenance, and future expansion.

FAQ

1. How much does a powder coating line cost?

There is no single standard price because powder coating lines are customized according to workpiece size, production capacity, pretreatment method, automation level, oven size, powder recovery system, conveyor design, and factory layout. A meaningful quotation requires specific production information.

2. What is the most expensive equipment in a powder coating line?

The cost structure varies by project. For a complete industrial line, major cost components can include the pretreatment system, curing oven, conveyor, powder coating and recovery system, and automatic spraying equipment. The relative cost depends heavily on the line's size and configuration.

3. Can I reduce the price by choosing a semi-automatic powder coating line?

Yes, when the production volume and product characteristics are suitable. Semi-automatic systems can reduce the initial investment by keeping certain operations manual while automating processes where consistency or production efficiency is more important. The key is to automate the actual bottlenecks rather than adding automation without a production requirement.
