Aluminum profiles are widely used for windows, doors, curtain walls, railings, frames, and other fabricated products. Their powder coating process has some specific requirements that need to be considered when designing the coating system.

For aluminum profiles, the surface preparation, hanging method, powder application, curing, and production speed all affect the final coating result. The equipment should therefore be configured according to the actual profile dimensions, production volume, and coating requirements.

Surface Preparation Is the Starting Point

Aluminum naturally forms an oxide layer, and its surface condition can vary depending on extrusion, storage, handling, and previous processing.

The pretreatment process should be selected according to the required coating performance and the customer's production conditions. A typical system may include cleaning, rinsing, chemical treatment, and drying, but the exact process should be determined according to the aluminum material, surface condition, coating system, and required corrosion resistance.

Good pretreatment provides a suitable surface for powder coating and helps maintain coating adhesion and durability.

Profile Length Affects the Line Design

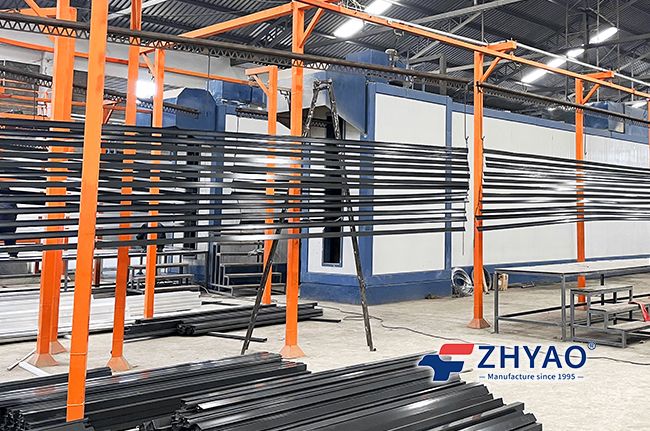

Aluminum profiles are often much longer than conventional metal parts. This directly affects the conveyor layout, hanger arrangement, booth dimensions, and oven design.

Long profiles need sufficient clearance during transportation and curing. The hanging method must also keep the profiles stable while preventing excessive movement through the spraying area.

For profiles with different lengths, the system may need to accommodate the longest workpiece while still maintaining a practical production speed.

Hanging Method Affects Coating Coverage

The way aluminum profiles are hung can change the spray distance and the areas accessible to the powder guns.

If several profiles are loaded together, their spacing and orientation need to allow sufficient powder access to the surfaces. Poor positioning can create shadow areas where powder coverage is reduced.

For this reason, hanger design should be considered together with the profile cross-section, length, weight, and spraying method.

Powder Application Depends on Profile Geometry

Aluminum profiles can have relatively simple surfaces or complex cross-sections with grooves, corners, and recessed sections.

Automatic powder guns can provide stable coverage for repetitive profiles, while manual spraying can be useful for difficult areas or products with frequent changes.

For some production requirements, a combination of automatic and manual spraying is practical. Automatic guns handle the main surfaces, while operators correct areas that are difficult to reach.

Curing Requires the Right Heating Conditions

After powder application, the profiles enter the curing oven. The oven must provide suitable heating conditions for the specific powder coating system.

The required curing condition is determined by the powder manufacturer's specifications and the actual workpiece temperature, rather than simply the oven air temperature.

Because aluminum profiles can vary considerably in length and cross-section, oven dimensions and conveyor speed should be matched to the actual production requirements.

Production Volume Determines the Level of Automation

Not every aluminum profile manufacturer needs the same level of automation.

For smaller production volumes or frequent profile changes, a manual or semi-automatic system can provide useful flexibility.

For continuous production of large quantities of similar profiles, an automatic powder coating line can integrate pretreatment, drying, powder spraying, curing, and conveying into a continuous process.

The key is to match the automation level with the production rhythm instead of adding automation that does not provide practical value.

Color Changes Should Be Considered Early

Many aluminum profile manufacturers produce multiple colors. Frequent color changes increase cleaning requirements and can affect production efficiency.

The powder booth and recovery system should therefore be selected according to the number of colors, production batches, powder types, and expected changeover frequency.

For high-frequency color changes, the booth and powder recovery configuration may require more attention than in a single-color production environment.

A Practical Aluminum Profile Powder Coating System

A typical aluminum profile powder coating system may include:

Pretreatment system → drying oven → powder coating booth → automatic/manual spray equipment → powder recovery system → curing oven → cooling section → conveyor

The actual configuration can be different depending on the profile dimensions, output, coating specification, factory layout, energy source, and automation requirements.

For a customized system, the most useful information to provide at the quotation stage includes profile length and cross-section, maximum profile weight, expected production output, number of colors, powder type, required coating performance, and available factory space.

For aluminum profiles, these details determine much more than the equipment size. They affect the entire production flow, from hanging and pretreatment to spraying and curing.

FAQ

What is the typical process for powder coating aluminum profiles?

A typical process includes pretreatment, drying, powder spraying, curing, and cooling. The exact pretreatment process depends on the aluminum surface and required coating performance.

Can aluminum profiles with different lengths use the same powder coating line?

Yes, if the line is designed around the required workpiece range. The longest profiles, profile weight, hanging method, oven dimensions, and conveyor arrangement should be considered during system design.

Is automatic powder spraying necessary for aluminum profiles?

Not always. Manual, semi-automatic, automatic, or combined spraying can all be used depending on production volume, profile geometry, product variety, and required coating consistency.
