Introduction

Powder coating lines are widely used in industries such as metal fabrication, automotive parts, home appliances, and construction materials. Understanding the key components of a powder coating line is essential for ensuring stable production, coating quality, and long-term operational efficiency.

This guide provides a clear breakdown of the main components involved in a typical powder coating line and explains how they work together as a complete system.

1. Pre-treatment System

The pre-treatment system is the foundation of coating quality. Its primary function is to clean and prepare the surface before powder application.

Common processes include:

Degreasing (removal of oil and contaminants)

Water rinsing

Chemical treatment (phosphating or passivation)

Drying

A properly designed pre-treatment system improves coating adhesion and corrosion resistance. Depending on product size and production requirements, systems can be configured as spray type or immersion type.

2. Drying Oven

After pre-treatment, the workpieces enter a drying oven to remove residual moisture.

Key considerations include:

Stable temperature control

Adequate airflow circulation

Energy efficiency

Proper drying ensures that no moisture remains on the surface, which could otherwise affect powder adhesion and coating uniformity.

3. Powder Spray Booth

The powder spray booth is where the coating process takes place. Powder is electrostatically charged and sprayed onto grounded workpieces.

Main components include:

Spray guns (manual or automatic)

Powder recovery system (cyclone or filter type)

Booth enclosure and airflow system

Efficient powder recovery systems can significantly improve material utilization and reduce waste.

4. Powder Supply System

The powder supply system ensures consistent delivery of coating powder to the spray guns.

It typically includes:

Powder hopper or feed center

Fluidization system

Powder pumps and hoses

Stable powder feeding is essential for achieving uniform coating thickness and consistent appearance.

5. Curing Oven

After spraying, the coated parts are transferred to the curing oven, where the powder melts and forms a solid, durable coating.

Important parameters:

Temperature control (typically 160–200°C depending on powder type)

Heating method (gas, electric, or diesel)

Residence time

Proper curing ensures strong adhesion, hardness, and resistance to corrosion and wear.

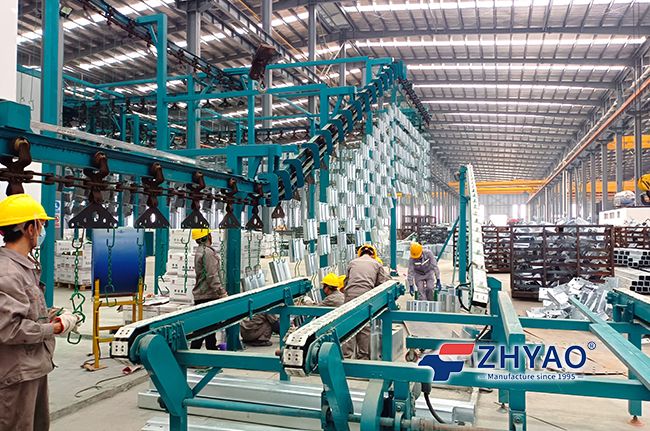

6. Conveyor System

The conveyor system connects all stages of the production line and transports workpieces through each process.

Common types include:

Overhead chain conveyor

Power and free conveyor

Accumulation conveyor

A well-designed conveyor system ensures smooth operation, balanced production flow, and compatibility with different product sizes.

7. Control System

Modern powder coating lines are often equipped with automated control systems to monitor and adjust production parameters.

Functions may include:

Temperature and speed control

Process synchronization

Fault detection and alarms

Automation improves production consistency and reduces manual intervention.

8. Environmental Protection System

Environmental considerations are an important part of powder coating line design.

Typical systems include:

Exhaust air filtration

Wastewater treatment (for pre-treatment section)

Heat recovery systems

These systems help meet environmental regulations and improve energy efficiency.

A powder coating line is a coordinated system where each component plays a critical role. From surface preparation to curing, every stage must be properly designed and integrated to achieve reliable coating performance.

Understanding these components allows manufacturers to make informed decisions when planning new lines or upgrading existing equipment.

If you are evaluating powder coating solutions for your production needs, it may be useful to review your product requirements, available space, and desired automation level to ensure the system configuration aligns with your operational goals.
