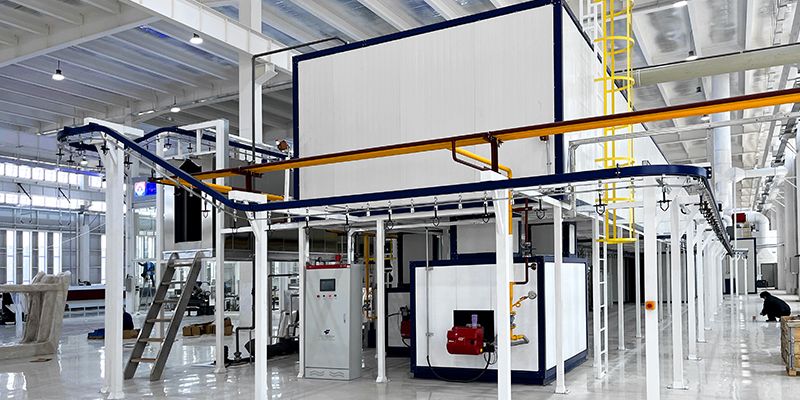

An 一个overhead powder coating line is designed for factories that need continuous production, efficient material handling, and consistent coating quality. It is commonly used for metal cabinets, steel frames, metal furniture, industrial components, and other fabricated metal products.

A complete system typically integrates pretreatment, drying, powder spraying, curing, and an overhead conveyor. For high-volume turnkey plants, the main design objective is to coordinate these processes while controlling equipment investment, energy consumption, and operating costs.

Pretreatment Must Match the Product

Pretreatment directly affects coating adhesion and corrosion resistance. The process may include degreasing, rinsing, and chemical conversion treatment, depending on the substrate, surface condition, and coating requirements.

Steel and aluminum components may require different pretreatment processes. The system should also accommodate the workpiece dimensions and production rate to ensure sufficient treatment time and consistent processing.

For this reason, pretreatment equipment should be selected according to the actual 实际 products 产品rather than a standard configuration applied to every project.

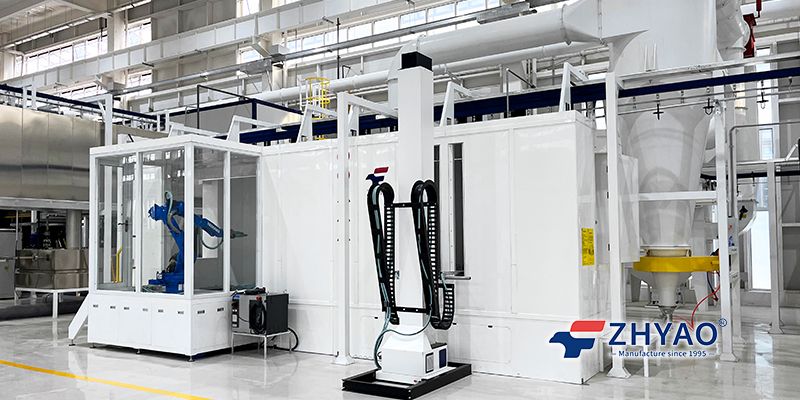

Powder Coating Booth Configuration

The powder coating booth must provide suitable access to the surfaces that require coating. Automatic spray guns are effective for repeatable products and stable production runs, while complex workpieces may require additional spray positions or manual touch-up.

Color-change frequency is another important consideration. Long production runs with limited color changes may favor a different booth and powder recovery arrangement from production involving frequent color changes.

Powder recovery can reduce material waste, but recovered powder must be managed according to the coating manufacturer's recommendations and the required finish quality.

Curing Oven Capacity Determines Line Throughput

The curing oven must meet the curing requirements of the selected powder coating material. Its design depends on workpiece dimensions, material thickness, loading density, conveyor speed, and required curing conditions.

The oven air temperature is 温度是not necessarily the same as the workpiece temperature. Heavy components may take longer to reach the required curing temperature than thin sheet-metal parts.

Therefore, oven sizing should account for actual heating requirements, and curing conditions should be verified against the powder manufacturer's technical data. Increasing the oven temperature alone does not guarantee proper curing.

Overhead Conveyor Design and Production Capacity

The overhead conveyor connects the process stages and determines how workpieces move through the line. Its design must account for workpiece weight, dimensions, hanger 悬挂spacing, and the required production output.

For example, if a line needs to transport 60 workpieces per hour, with one workpiece per hanger, the target loading interval is one workpiece per minute. With a hanger pitch of 2 meters, the corresponding theoretical conveyor speed is 2 meters per minute.

This calculation assumes continuous flow and does not account for downtime, loading delays, or process bottlenecks. Actual output also depends on spraying capacity, curing time, and the efficiency of loading and unloading.

Factory height, available floor space, conveyor turns, and maintenance access should be evaluated before the layout is finalized.

How to Control the Cost of a Turnkey Powder Coating Plant

A cost-effective plant is not simply the one with the lowest initial quotation. It is a system that meets the production target without unnecessary equipment or excessive operating costs.

Several factors influence the investment:

• Production output: Determines conveyor capacity and the required size of process 生产产量：决定输送机容量和所需的工艺尺寸。equipment.

• Product variety: Affects hanger design, loading arrangements, and spray coverage.

• Color-change frequency: Influences booth selection, cleaning time, and powder recovery arrangements.

• Energy source: Affects curing oven design and operating 烤箱设计与操作costs.

• Automation level: Should reflect production volume, product consistency, and labor requirements.

• Factory conditions: Existing building dimensions and utilities influence equipment layout and installation costs.

For high-volume production, a continuous overhead conveyor can reduce manual handling and maintain a steady material flow. However, the entire line must be balanced. A high-speed conveyor will not increase actual output if the spraying process or curing oven cannot keep up.

Before requesting a quotation, provide the supplier with product photos, material, dimensions, maximum weight, target daily output, coating requirements, color-change frequency, and available factory space. This information helps determine a practical configuration rather than an unnecessarily expensive standard package.

Frequently Asked Questions

1. What equipment is included in an overhead powder coating line?

A typical system includes a pretreatment system, drying oven, powder coating booth, curing oven, overhead conveyor, and electrical control system. The final configuration 系统 。 最终配置depends 取决于on the products and production requirements.

2. Is an overhead powder coating line suitable for high-volume production?

Yes. It is suitable for continuous production when conveyor speed, hanger spacing, spraying capacity, and curing conditions 以及治疗条件are properly coordinated.

3. How can the investment in a turnkey powder coating plant be reduced?

Match equipment capacity to actual production needs, select an appropriate automation level, optimize the factory layout, and evaluate energy consumption and maintenance costs without compromising essential coating or safety requirements.
