What Is an Integrated Powder Coating System?

An integrated powder coating system combines multiple production stages into one coordinated process. Instead of treating pretreatment, conveying, powder spraying, curing, and unloading as separate operations, the equipment is designed to work together according to the manufacturer's production requirements.

This approach is commonly considered for industrial manufacturing where stable process flow and repeatable coating conditions are important.

Start With the Workpiece

The system configuration should be based on the products being coated. Workpiece material, dimensions, weight, surface condition, production volume, and product variety all influence equipment selection.

For example, steel components with rust or scale may require shot blasting, while other products may use spray pretreatment or immersion pretreatment before powder coating.

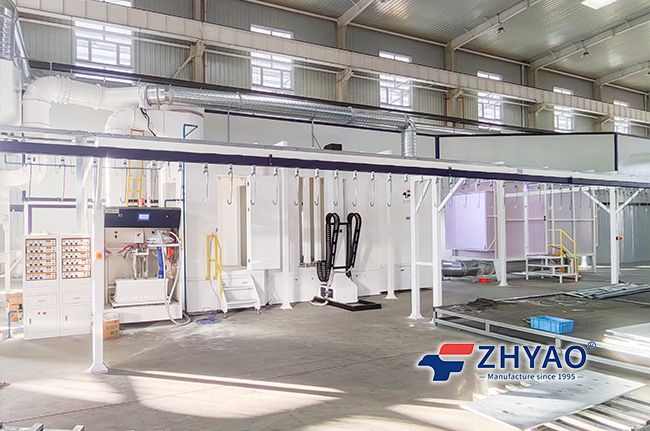

   （ZHYAO Electrical Cabinet Powder Coating Production Line Project, Hebei, China）

Connect Each Process Stage

A typical integrated powder coating system can include loading, pretreatment, drying, powder spraying, powder recovery, curing, cooling, and unloading.

The conveyor links these stages and determines how workpieces move through the production process. Conveyor speed needs to match pretreatment time, oven residence time, spraying requirements, and production output.

Powder Application and Recovery

The powder coating section may combine automatic spray guns, reciprocators, manual spray guns, powder feeding equipment, and recovery equipment.

The appropriate arrangement depends on workpiece geometry and production conditions. Products with consistent shapes can be suitable for greater automation, while complex or frequently changing products may require manual assistance.

Why Process Integration Matters

An integrated system allows manufacturers to consider the complete production flow rather than selecting individual machines separately. Equipment capacity, conveyor movement, heating, ventilation, electrical controls, and operator access can be planned together.

This can also make it easier to identify potential bottlenecks before installation.

Conclusion

An integrated powder coating system is built around the relationship between workpieces, process requirements, equipment capacity, and factory conditions. The objective is to create a coordinated production flow from surface preparation to finished coating.

For industrial manufacturers, the right configuration should be determined by actual products and output requirements rather than simply adding more automated equipment.

FAQ

What equipment can be included in an integrated powder coating system?
Depending on the application, it may include pretreatment equipment, conveyor, drying oven, powder coating booth, spray equipment, powder recovery, curing oven, cooling section, and electrical controls.

Can an integrated powder coating system be customized?
Yes. The process sequence, equipment dimensions, conveyor configuration, automation level, and pretreatment method can be adjusted according to the workpieces and factory conditions.
