Designing an industrial powder coating line is not simply a matter of combining a spray booth, curing oven, and conveyor. A reliable production line needs to coordinate pretreatment, drying, powder application, recovery, curing, conveying, ventilation, and electrical control as one integrated system.

From an equipment engineering perspective, the key question is not which machine should be purchased, but how the entire process should be designed around the workpieces and production requirements.

So, how is an industrial powder coating line designed? The answer starts with the product and works through every stage of the coating process.

1. Start with the Workpiece, Not the Equipment

Before selecting equipment, I first look at the workpieces that will run through the line.

The following information directly affects the system design:

Workpiece material

Maximum and minimum dimensions

Individual workpiece weight

Shape and surface structure

Required coating thickness

Required corrosion resistance

Production volume

Powder colors and color-change frequency

For example, a line designed for small hardware components is very different from a line for large steel structures or aluminum profiles.

The workpiece determines the conveyor dimensions, hanging method, spray arrangement, oven size, pretreatment method, and many other parameters.

2. Define the Production Capacity

The next step is to determine how many products the line needs to process.

Production capacity is usually considered in terms of pieces per hour, meters per hour, or total weight processed over a working period.

This requirement affects the conveyor speed and the capacity of almost every major system.

A typical production flow is:

Loading → Pretreatment → Drying → Powder Spraying → Curing → Cooling → Unloading

If the production target increases, the line may need:

Higher conveyor speed

Longer pretreatment sections

More spray guns

Larger powder recovery capacity

Longer or more efficient curing ovens

More automated loading and unloading

This is why production capacity should be established before equipment dimensions are finalized.

3. Select the Appropriate Pretreatment Process

Pretreatment is one of the first major engineering decisions in a powder coating line.

Depending on the material and corrosion-resistance requirements, common solutions include:

Spray Pretreatment

A series of spray chambers applies chemicals to the workpieces as they pass through the tunnel.

This configuration is commonly used for continuous production where the product dimensions are relatively consistent.

Dip Pretreatment

Workpieces are immersed in chemical tanks for treatment.

This method can be useful for products with complicated shapes or surfaces that are difficult to reach with spray treatment.

Shot Blasting

For suitable steel workpieces, shot blasting can remove rust, scale, and other surface contaminants while creating an appropriate surface profile for coating.

The choice should be based on the actual workpiece and coating specification rather than simply selecting the most complex pretreatment system.

4. Design the Conveyor System

The conveyor is the backbone of an automatic powder coating line.

It determines how workpieces move between different processes and directly influences production capacity.

When designing the conveyor, engineers need to consider:

Workpiece weight

Workpiece dimensions

Hanging method

Conveyor speed

Required curing time

Factory layout

Available ceiling height

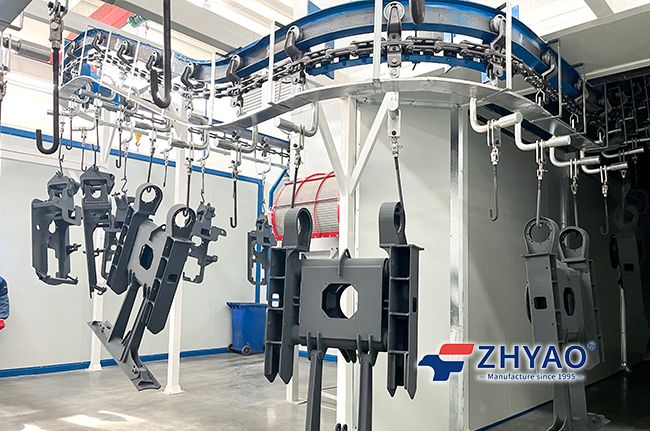

Overhead chain conveyors are commonly used in industrial powder coating systems. For production requiring accumulation and flexible material flow, a power-and-free conveyor may be more appropriate.

The hanger design is also important. Poor hanger positioning can create shadow areas during spraying and affect coating coverage.

5. Design the Powder Spray System

After pretreatment and drying, the workpieces enter the powder application section.

A typical automatic powder spraying system may include:

Powder spray booth

Automatic spray guns

Manual touch-up guns

Reciprocators

Powder pumps

Powder hopper or powder feed center

Powder recovery system

The number and position of spray guns should be determined according to the workpiece geometry.

Flat panels, tubes, frames, mesh products, and complex fabricated components all require different spray arrangements.

For complex workpieces, automatic spraying may be combined with manual touch-up or robotic spraying to reach areas that are difficult for fixed guns to cover.

6. Plan Powder Recovery and Color Change

Powder recovery is closely related to both material utilization and production flexibility.

During spraying, part of the powder does not reach the workpiece. The recovery system collects oversprayed powder and separates it from the exhaust airflow.

Common configurations include:

Cyclone recovery

Cartridge filter recovery

Combined recovery systems

Color-change frequency should also be considered at the design stage.

If the factory frequently changes colors, the spray booth and recovery system should be designed for faster cleaning and reduced powder contamination.

A system designed for one or two colors per day may be very different from one handling many colors during a single shift.

7. Engineer the Curing Oven Around the Coating Process

The curing oven is another critical part of system design.

Powder coating does not simply require the oven to reach a certain temperature. The workpiece must receive the required heat exposure throughout its entire surface and production cycle.

When designing the oven, engineers consider:

Workpiece dimensions

Workpiece mass

Conveyor speed

Powder manufacturer's curing requirements

Heating capacity

Air circulation

Oven insulation

Temperature uniformity

Different workpieces may require different heating conditions. A lightweight sheet-metal component and a heavy steel assembly will not respond to heat in the same way.

For this reason, oven design should be based on the actual thermal load rather than using only a standard oven size.

8. Consider Factory Layout Early

A technically suitable system may still be difficult to implement if the factory layout is not considered from the beginning.

The available:

Length

Width

Height

Column positions

Doors

Existing equipment

Material flow routes

can all affect the final line configuration.

For factories with limited space, the production line may need to use a compact layout, multiple conveyor levels, or customized equipment arrangements.

The goal is not simply to fit all machines into the building. The material flow should also remain logical and accessible for operation and maintenance.

9. Integrate the Electrical and Control System

Once the mechanical equipment is defined, the control system needs to coordinate the entire line.

A typical automatic system may include:

PLC

HMI touchscreen

Temperature controllers

Conveyor control

Burner control

Spray system control

Safety interlocks

Alarm functions

For example, if the conveyor stops unexpectedly, the control system should coordinate the spraying and heating equipment according to the designed safety logic.

Good control-system design is therefore not only about automation. It is also about maintaining stable and safe operation.

10. Balance Automation with Actual Production Needs

More automation does not always mean a better coating line.

For a small production volume with many product varieties, excessive automation can make the system unnecessarily complicated.

For continuous high-volume production, however, automatic spraying, automatic loading and unloading, robotic handling, and centralized powder management can provide significant operational benefits.

From an engineering perspective, automation should be selected according to:

Production volume

Product consistency

Labor availability

Color-change requirements

Required coating quality

Future production plans

The objective is to achieve the appropriate level of automation rather than simply maximizing automation.

11. A Complete System Must Be Designed as One Process

The most common mistake in coating line planning is treating each machine as an independent product.

In reality, the systems are interconnected.

For example:

Pretreatment capacity → Drying capacity → Conveyor speed → Spraying capacity → Oven capacity

If one section becomes a bottleneck, increasing the capacity of another section may not improve the overall production rate.

A well-designed powder coating line therefore considers the entire process from loading to unloading.

12. Information Needed Before Designing a Powder Coating Line

Before preparing a technical proposal, an equipment engineer normally needs several basic production parameters:

Factory dimensions

Workpiece material

Workpiece dimensions

Workpiece weight

Daily production target

Working hours

Powder coating requirements

Number of colors

Color-change frequency

Required automation level

With this information, the equipment configuration, conveyor layout, pretreatment method, spraying system, oven dimensions, and control strategy can be evaluated more accurately.

Conclusion

Industrial powder coating line system design is a process of matching equipment to production requirements.

The correct design starts with the workpiece and production target, then develops the pretreatment, conveyor, spraying, powder recovery, curing, cooling, and control systems around those requirements.

A successful coating line is not necessarily the largest or most automated system. It is the system in which every section is properly matched, the material flow is smooth, and the equipment can maintain stable coating quality under the expected production conditions.

From an equipment engineering perspective, this is the foundation of a reliable powder coating production line: design the process first, then select the equipment that makes the process work.
