Designing a complete powder coating line starts with the products to be coated, not with a list of machines. Workpiece dimensions, production targets, surface preparation requirements, coating specifications, and factory conditions all influence how the system should be configured.

A line may include pretreatment, drying, powder application, curing, and conveying equipment, but the correct combination depends on how these processes work together. A mismatch between any two stages can limit production capacity, create coating defects, or increase operating costs.

1. Define the Workpiece and Production Requirements

The first design decision is to establish the range of products the line must handle.

Workpiece dimensions and weight determine the available loading space, conveyor capacity, hanger arrangement, and oven dimensions. Shape also matters. Deep recesses, narrow gaps, welded joints, and complex geometries can make pretreatment and powder application more difficult.

Production requirements should be defined at the same time. A factory processing hundreds of small metal parts per shift has different needs from one coating large steel frames or heavy machinery components.

The main information to confirm includes:

• Workpiece material, dimensions, and maximum weight

• Surface condition and required corrosion resistance

• Expected production output per shift

• Powder coating specifications and curing requirements

• Product variety and frequency of color changes

• Available factory space and ceiling height

These details establish the design limits. If a line must process several product types, the design should identify the largest, heaviest, and most process-sensitive workpieces rather than relying only on an average product.

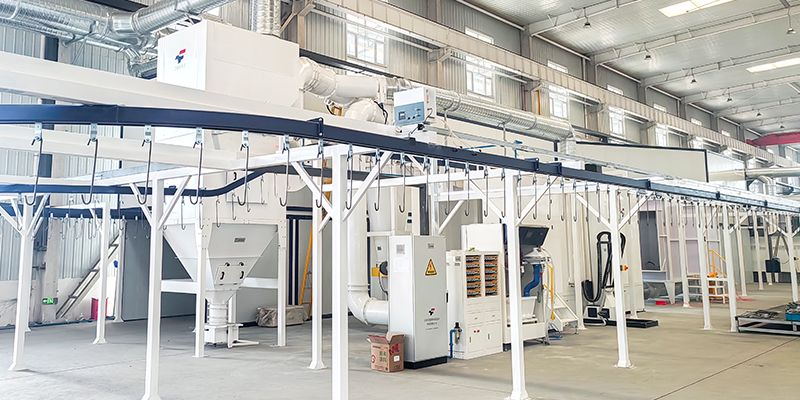

                                               （ZHYAO Electrical Cabinet Painting Production Line Project）

2. Calculate Line Capacity Across All Process Stages

A powder coating line is only as productive as its limiting process. A conveyor may transport parts quickly, but the system cannot maintain that output if pretreatment, drying, spraying, or curing requires more time.

For a continuous line, conveyor speed, hanger spacing, and loading density determine how many workpieces enter the system over a given period. The required processing time then determines the effective length of each process zone.

For example, increasing conveyor speed may raise theoretical output, but it also reduces the time available for pretreatment and drying. In the curing oven, it reduces the time each workpiece spends in the heated zone.

The design must therefore balance production speed with process requirements.

Workpiece arrangement is another important factor. Larger parts may need greater spacing to prevent contact and allow spray access. Their size can also reduce the number of parts carried by each hanger. As a result, two lines operating at the same conveyor speed may achieve very different output levels.

Capacity calculations should account for actual loading conditions, product changes, and normal production interruptions. The target should be a realistic production rate that the complete system can sustain, not simply the maximum speed of one machine.

3. Match Pretreatment, Powder Application, and Curing

These three stages have different functions, but their requirements must be coordinated from the beginning.

Pretreatment depends on the material and surface condition.

Spray pretreatment, immersion treatment, and abrasive blasting serve different applications. The appropriate method depends on the substrate, contamination, existing rust or scale, required coating performance, and workpiece geometry.

For example, sheet-metal enclosures may be suitable for a spray pretreatment line, while large steel structures with significant surface contamination may require abrasive blasting. Immersion treatment may be considered when the workpiece geometry and process requirements favor liquid contact with complex surfaces.

Where wet pretreatment is used, the drying stage must remove residual moisture before powder application. Drainage, trapped liquid, and the accessibility of recesses should be considered when designing the process.

Powder application depends on geometry and production variation.

Automatic spray guns can improve consistency and reduce repetitive manual work when products and production conditions are suitable. However, complex workpieces may have recessed areas, Faraday cage effects, or surfaces that are difficult to reach with fixed gun positions.

In these cases, gun arrangement, workpiece orientation, and spray settings need to be evaluated. Manual touch-up may still be necessary for certain areas.

Color-change frequency also affects the booth configuration. A factory producing long runs of one color has different cleaning and recovery requirements from a factory changing colors several times per shift. The booth and powder recovery system should reflect the actual production schedule.

Curing must be based on the coating specification.

The oven must provide the time and temperature conditions required by the selected powder. The specified curing schedule generally refers to the workpiece temperature, not simply the oven air temperature.

Thick or heavy components may heat more slowly than thin sheet metal. Loading density, workpiece mass, conveyor speed, and oven temperature uniformity should therefore be considered together. Where necessary, temperature profiling can help verify whether the workpieces reach the required curing conditions.

4. Integrate the Conveyor and Factory Layout

The conveyor is not simply a transport device. It determines how parts move between process stages and how the line fits into the factory.

An overhead chain conveyor is often considered for continuous production. Power-and-free systems may be appropriate when different process stages need more independent movement or accumulation. Floor rail conveyors and other handling arrangements may be more suitable for certain heavy or oversized workpieces.

The selection depends on load capacity, production rhythm, available headroom, workpiece dimensions, and loading requirements.

Factory layout also affects equipment design. The available space must accommodate the process sequence, loading and unloading, maintenance access, ventilation, and the movement of operators and materials.

For long workpieces, the turning radius and clearance around corners may determine whether a proposed conveyor route is practical. For heavy parts, loading equipment and safe handling space may influence the entire line arrangement.

A layout that fits on a drawing is not necessarily suitable for daily production. Maintenance access and safe handling should be checked before equipment dimensions and installation positions are finalized.

5. Verify the Complete System Before Manufacturing

Before finalizing the equipment configuration, the design should be reviewed as one connected production system.

The review should confirm that:

• The conveyor can safely handle the maximum workpiece load.

• The line capacity matches the required production output.

• Pretreatment and drying meet the process requirements.

• Spray equipment can reach the required coating surfaces.

• The curing oven can achieve the specified curing conditions.

• Color changes, loading operations, and maintenance are compatible with the production plan.

• The proposed layout fits the actual factory conditions.

This review helps identify bottlenecks before manufacturing and installation. It also clarifies where testing or further process confirmation is needed.

A complete powder coating line should accommodate the main product range without making every component unnecessarily complicated. If two products have substantially different pretreatment or curing requirements, forcing them through the same process may not be practical. The design should establish which products can share one line and where adjustments or separate process arrangements may be necessary.

Information to Prepare for a Powder Coating Line Project

When requesting a line design or quotation, provide workpiece drawings or photographs, dimensions, maximum weight, material, surface condition, expected production output, coating requirements, color-change frequency, and available factory dimensions.

If the energy source or automation level has already been determined, include that information as well.

These details help establish the process sequence, equipment capacity, conveyor arrangement, and layout. Where specifications remain uncertain, sample testing or further technical confirmation may be needed before the final design is approved.

FAQ

1. What determines the configuration of a complete powder coating line?

The main factors are workpiece characteristics, production capacity, pretreatment requirements, powder application method, curing specifications, and factory conditions. These factors must be considered together rather than selecting each machine independently.

2. Can one powder coating line handle different workpieces?

Yes, if the workpieces fall within the system's design limits and their process requirements are compatible. Differences in size, weight, geometry, surface preparation, and curing conditions may require adjustable equipment or different handling arrangements.

3. How can production capacity be increased without reducing coating quality?

The first step is to identify the limiting process. Conveyor speed, hanger spacing, pretreatment time, spray coverage, and curing conditions should be reviewed together. Increasing line speed alone may reduce processing time and compromise coating results if the other stages are not adjusted accordingly.
