How a Cyclone Booth Supports Powder Recovery and Stable Coating Production

A powder coating line needs more than spray guns and an oven. The powder booth and recovery system have a direct influence on powder utilization, booth cleanliness, color change efficiency, and the stability of daily production.

For factories processing steel parts, hardware, automotive components, appliances, furniture, electrical cabinets, and other industrial products, a powder coating line with cyclone booth can provide an effective way to collect overspray powder while maintaining a controlled spraying environment.

The cyclone is not a standalone replacement for filtration. It is normally integrated with the powder booth, exhaust system, powder collection equipment, and final filtration stage as part of the complete coating system.

What Is a Powder Coating Line with Cyclone Booth?

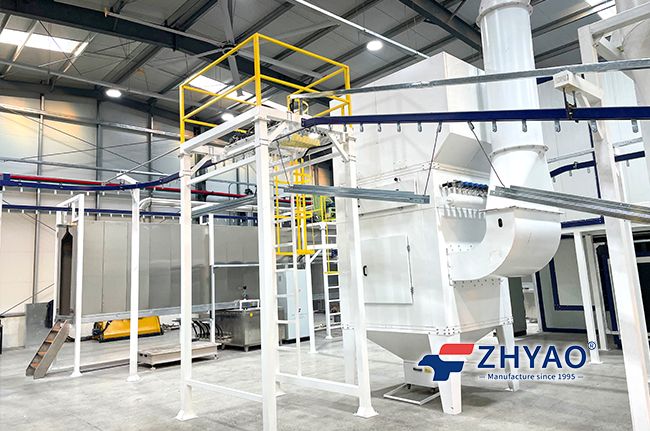

A powder coating line with cyclone booth is a conveyorized coating system equipped with a powder spray booth and cyclone-based powder recovery system.

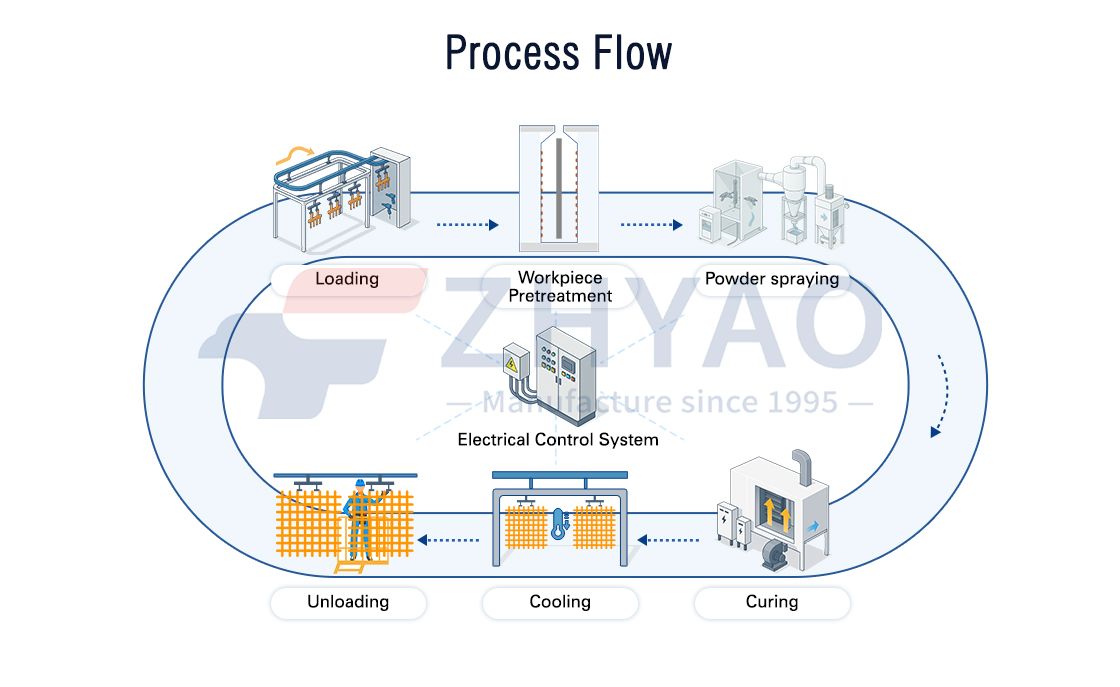

A typical production line may include:

Loading → Pretreatment → Drying → Powder Spraying → Cyclone Recovery → Curing → Cooling → Unloading

Depending on the product and production requirements, the line can also include automatic reciprocators, automatic spray guns, manual spray stations, heat exchangers, automatic conveyor systems, and electrical control equipment.

The cyclone separator is mainly used to separate powder particles from the booth exhaust airflow. Recovered powder can then be collected and managed according to the powder manufacturer's recommendations and the production process.

How Does a Cyclone Powder Recovery System Work?

During powder spraying, part of the powder adheres to the workpiece, while the remaining overspray enters the booth airflow.

The powder-laden air is drawn toward the cyclone separator. Inside the cyclone, the airflow rotates rapidly. Centrifugal forces cause a significant portion of the larger powder particles to move toward the cyclone wall and fall into the collection area.

The cleaned airflow then continues toward the downstream filtration equipment.

A simplified process is:

Powder Overspray → Booth Exhaust → Cyclone Separation → Powder Collection → Final Filtration

The cyclone therefore works as one stage of the recovery and exhaust system rather than operating independently.

Why Use a Cyclone Booth in a Powder Coating Line?

1. Efficient Separation of Overspray Powder

A cyclone can remove a substantial portion of powder from the exhaust airflow before the air reaches the final filter.

This reduces the powder load on downstream filtration equipment and allows the recovery system to handle continuous spraying more effectively.

Actual recovery performance depends on powder characteristics, cyclone design, airflow volume, operating conditions, and the complete recovery configuration.

2. Suitable for Continuous Production

For production lines with relatively high powder consumption, continuous powder recovery can be important.

A properly sized cyclone system can continuously separate powder during spraying instead of requiring operators to stop the line frequently for manual collection.

This is particularly useful for factories with stable, high-volume production.

3. Helps Reduce Powder Waste

Overspray represents powder that has not reached the workpiece. Recovering suitable powder can reduce material loss.

However, recovered powder should not automatically be mixed back into every production process. Its reuse depends on powder type, color, contamination control, and the coating manufacturer's recommendations.

For applications requiring strict color consistency or frequent color changes, the recovery strategy needs to be carefully considered.

4. Reduces the Load on Final Filters

One important function of a cyclone is to perform primary separation before the exhaust air reaches the final filtration stage.

By removing a large amount of powder upstream, the cyclone can reduce the amount of powder reaching cartridge filters or other final filtration equipment.

This can contribute to more stable filtration performance and easier maintenance.

Main Components of a Powder Coating Line with Cyclone Booth

Powder Coating Booth

The booth provides a controlled spraying area around the workpiece.

Its dimensions are determined by workpiece size, conveyor configuration, spray gun arrangement, operator access, and required production capacity.

Airflow inside the booth should be properly controlled to prevent excessive powder escape while maintaining effective overspray collection.

Cyclone Separator

The cyclone is the core component of the primary powder separation system.

Its diameter, height, inlet configuration, airflow requirements, and powder collection method need to be matched to the booth and production capacity.

Oversized or undersized equipment can affect recovery performance and system stability.

Powder Collection System

Separated powder is collected after passing through the cyclone.

The collection method can vary depending on the equipment design. The recovered powder should be handled in a way that prevents contamination, moisture absorption, and unnecessary exposure to the production environment.

Final Filtration System

The cyclone does not eliminate the need for final filtration.

Fine powder particles that remain in the exhaust airflow need to be captured by appropriate downstream filtration equipment before the air is discharged or recirculated, depending on the system design.

This combination provides a more complete approach to powder containment and exhaust treatment.

Automatic Powder Spray System

Automatic powder guns can be installed inside the booth according to workpiece geometry and production requirements.

Reciprocators can move the guns vertically or according to a programmed motion pattern, helping provide more consistent coverage over larger workpieces.

Manual guns can also be added for complex areas or touch-up operations.

Conveyor System

The conveyor determines how workpieces move through the pretreatment, drying, spraying, and curing stages.

Conveyor speed should be coordinated with the required process times and production output.

For example, increasing conveyor speed without adjusting spraying parameters may reduce powder deposition and affect coating thickness.

Curing Oven

After powder spraying, the workpiece enters the curing oven.

The oven needs to provide the thermal conditions required by the specific powder coating material. Workpiece temperature, heating uniformity, conveyor speed, and curing time all need to be considered.

Cyclone Booth vs. Cartridge Recovery

Cyclone and cartridge recovery systems have different characteristics, so the better choice depends on the application.

A cyclone-based system is often considered for production environments where continuous spraying and relatively high powder throughput are important. It provides primary particle separation and can work together with final filtration.

Cartridge-based recovery systems are also widely used, particularly where compact equipment, filtration efficiency, or frequent color changes are important.

For a factory with frequent color changes, recovery system design becomes especially important. The ease of cleaning the booth, cyclone, ducts, guns, hoses, and collection equipment can have a direct impact on changeover time.

Therefore, the choice should not be based only on the recovery method. Production volume, powder type, color schedule, workpiece dimensions, factory space, and maintenance requirements should all be evaluated.

How to Design a Powder Coating Line with Cyclone Booth

Before equipment selection, several production parameters should be confirmed.

Workpiece Dimensions

The maximum length, width, height, and weight determine the booth size, conveyor capacity, oven dimensions, and hanging method.

Large components may require a larger spray booth and increased conveyor load capacity.

Production Output

The required production capacity should be expressed in measurable terms, such as:

• Pieces per hour

• Pieces per shift

• Daily production

• Monthly production

• Working hours per day

Production output should be evaluated together with workpiece dimensions and hanging density.

Powder Type and Color

Different powder materials can have different application and recovery characteristics.

The number of colors and frequency of color changes are also important. A production line running one color continuously can use a different recovery strategy from a factory changing colors several times per day.

Automation Requirements

The spraying system can be configured according to production needs.

Possible configurations include:

• Manual powder spraying

• Automatic spray guns

• Automatic reciprocators

• Robotic powder spraying

• Automatic powder supply

• Automatic conveyor control

The goal is not simply to maximize automation, but to match automation with actual production requirements.

Factory Layout

The available installation space determines how the powder coating line can be arranged.

A straight-line layout is common for factories with sufficient length, while U-shaped or other customized layouts may be considered when space is limited.

The cyclone, booth, curing oven, conveyor, electrical cabinet, and maintenance areas should all be considered during the layout stage.

Common Problems to Watch for During Operation

Even a properly designed cyclone booth requires correct operation and maintenance.

Insufficient airflow can affect powder containment and recovery performance.

Improper cyclone sizing can reduce separation efficiency.

Powder buildup in ducts or equipment can create cleaning and maintenance problems.

Poor grounding of workpieces can reduce powder transfer efficiency.

Frequent color changes without adequate cleaning can increase the risk of cross-color contamination.

Incorrect powder reuse can also affect coating appearance and consistency.

Regular inspection of the booth, cyclone, filters, ducts, powder collection system, spray guns, and grounding system helps maintain stable operation.

Is a Cyclone Booth Suitable for Every Powder Coating Line?

Not necessarily.

A cyclone recovery system can be a good option for certain high-throughput and continuous-production applications, but it may not be the most practical solution for every factory.

For example, a manufacturer producing many colors in small batches may place greater importance on rapid cleaning and powder changeover. In such cases, another recovery configuration may be more suitable.

The correct system should be determined by the complete production profile rather than by the cyclone itself.

Conclusion

A Powder Coating Line with Cyclone Booth combines powder application, primary overspray separation, filtration, curing, and material handling into a coordinated production process.

The cyclone plays an important role in separating powder from booth exhaust airflow and reducing the powder load on downstream filtration equipment. However, its performance depends on correct sizing, airflow design, powder characteristics, booth configuration, and operating conditions.

For manufacturers planning a new powder coating line, the key parameters are workpiece dimensions, material, weight, production output, powder type, color-change frequency, factory space, and automation requirements.

A well-designed system should balance coating quality, powder recovery, maintenance, production efficiency, and future operating needs rather than focusing on a single piece of equipment.
