The number of automatic powder spray guns required for a powder coating line depends on the workpiece dimensions, coating area, production speed, and required coating quality. There is no fixed number suitable for every production line.

A line with four spray guns may work well for one type of product but fail to provide sufficient coverage for another. Adding more guns does not automatically improve coating quality either. The key is to match the spray gun configuration to the actual production requirements.

Workpiece Dimensions Determine the Initial Gun Configuration

The first consideration is the size and shape of the workpiece.

For relatively small, flat components, a limited number of spray guns may provide sufficient coverage. Larger workpieces, such as metal cabinets, steel frames, equipment housings, and long profiles, usually require more spray guns or a different gun arrangement.

The coating surfaces also matter. A workpiece may have a large overall size but only a few surfaces that require coating. Another product with similar dimensions may have multiple sides, recessed areas, edges, and structural details.

Before determining the number of guns, the following information should be clarified:

• Maximum and minimum workpiece dimensions.

• Surfaces that require powder coating.

• Workpiece shape and structural complexity.

• Whether both sides need to be coated.

• How the workpieces are positioned on the conveyor.

These details help determine how many guns are needed and where they should be installed.

Production Speed Affects the Number of Spray Guns

Workpiece dimensions alone cannot determine the gun quantity. Production speed is another important factor.

When the conveyor runs faster, each workpiece spends less time in the spray area. The spray guns must complete the required coating within this shorter period.

For example, a production line handling a relatively small number of workpieces per hour may use fewer spray guns than a line processing the same products at a higher output.

However, increasing the number of guns is not always the first solution when production capacity is insufficient. The available spraying time, powder output, gun arrangement, and conveyor loading method should also be evaluated.

The relationship between conveyor speed and spray gun quantity should therefore be considered during the initial line design, rather than adjusted after the equipment has been installed.

Gun Positioning Matters as Much as Gun Quantity

A common mistake is to focus only on the total number of spray guns while overlooking their positions.

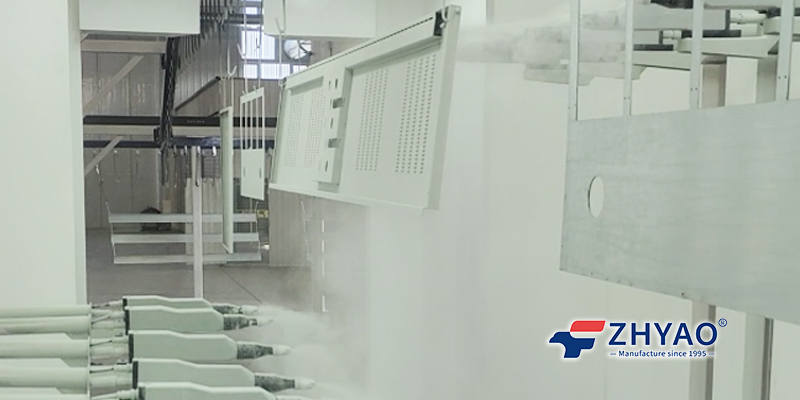

In an automatic powder coating booth, guns are commonly arranged on both sides of the workpiece. Depending on the product, additional guns may be required at the front, rear, top, or bottom.

For example:

• Flat metal panels: Side-mounted guns may provide sufficient coverage, depending on panel dimensions and orientation.

• Metal cabinets: Front, side, and internal structural areas may require different spray angles and gun positions.

• Steel frames: Multiple spray directions may be needed to reach crossbars, edges, and recessed areas.

• Long profiles: Gun arrangement should account for profile length, cross-section, and conveyor movement.

The objective is to create an effective spraying pattern with suitable coverage and overlap.

If several guns are installed too close together, their spray patterns may overlap unnecessarily. If the spacing is too large, some areas may receive insufficient powder.

The final arrangement should be evaluated through actual spraying tests with representative workpieces.

The Number of Guns Must Match the Powder Supply System

Every automatic spray gun has a certain powder output range. The total powder demand of the spraying process must be considered when selecting the number of guns.

If too many guns operate simultaneously, the powder supply system must be capable of supporting their combined demand. Otherwise, unstable powder delivery may affect spraying consistency.

Other factors also need attention:

• Powder pump capacity and configuration.

• Powder hose length and routing.

• Compressed air supply.

• Powder type and application characteristics.

• Required coating thickness.

The powder recovery system also needs to match the spraying workload. Increasing the number of guns without considering booth airflow and powder recovery capacity can create additional operating problems.

For this reason, spray guns, powder supply, spray booth, and recovery equipment should be designed as a coordinated system.

When Are More Spray Guns Actually Necessary?

Adding spray guns may be reasonable in several situations:

• The workpiece has a larger coating area.

• Both sides or multiple surfaces need simultaneous coating.

• Production speed needs to increase.

• The existing gun arrangement cannot provide adequate coverage.

• Product changes introduce more complex workpiece structures.

However, additional guns are not necessarily the right answer when coating defects occur.

If powder cannot reach recessed areas, the problem may be related to gun angles, workpiece orientation, electrostatic settings, or Faraday cage effects. Simply adding more guns may not solve it.

For complex products, automatic spraying can handle accessible surfaces, while manual touch-up may still be necessary for difficult areas. The appropriate division depends on the workpiece structure and coating requirements.

What Information Is Needed to Calculate the Gun Quantity?

Before preparing a powder coating line proposal, the equipment supplier should understand the actual products and production conditions.

The following information is particularly useful:

Product drawings or photographs are especially useful when workpieces have complicated structures.

With this information, the supplier can evaluate the required number of automatic spray guns, their installation positions, and the matching powder supply and recovery systems.

The Right Configuration Is More Important Than a Higher Gun Count

There is no universal standard for the number of automatic powder spray guns in an industrial powder coating line.

A suitable configuration should provide sufficient coating coverage at the required production speed while maintaining stable powder delivery and reasonable operating costs.

For some products, a relatively simple gun arrangement is sufficient. For larger or more complicated workpieces, additional guns and different spraying directions may be necessary.

When planning a new powder coating line, it is better to determine the gun quantity from actual workpiece samples, production targets, and coating requirements rather than selecting equipment based on a standard gun count.

At ZHYAO, automatic powder coating line configurations are designed according to workpiece characteristics and production requirements. The spray booth, automatic guns, powder supply, recovery equipment, and conveyor system are considered together to ensure that the equipment arrangement matches the intended production process.

Frequently Asked Questions

How many automatic powder spray guns are normally used in a powder coating line?

There is no fixed number. The quantity depends on workpiece dimensions, coating surfaces, conveyor speed, production output, and required coating quality.

Does adding more powder spray guns increase production capacity?

It can increase spraying capacity under suitable conditions, but only when the powder supply, booth airflow, recovery system, and conveyor speed can support the additional guns.

Can one powder coating line handle products with different dimensions?

Yes, depending on the equipment design. Gun positions, spraying programs, conveyor loading arrangements, and booth dimensions should accommodate the product range. Products with significantly different structures may require adjustments or additional manual spraying.
