Batch and continuous powder coating lines are designed for different production conditions. The right choice depends on how the factory handles workpiece size, product variety, production volume, color changes, and production flow.

For a coating equipment project, selecting the production method early can help determine the appropriate conveyor, oven, spraying, and handling configuration.

Batch Powder Coating Line

A batch powder coating line processes workpieces in groups rather than moving them continuously through every stage.

Workpieces are loaded onto racks or hangers and processed through pretreatment, drying, powder coating, curing, and unloading according to the production schedule.

A batch system can be suitable when:

• Product types change frequently
• Workpiece dimensions vary considerably
• Production volume is relatively small or medium
• Different products require different coating conditions
• The factory needs flexibility in production scheduling

For example, a manufacturer producing different types of metal frames, brackets, cabinets, or agricultural components may use batch processing because products can be handled in separate groups.

The main engineering advantage is flexibility. Production can be adjusted between batches without requiring the entire line to maintain one continuous product flow.

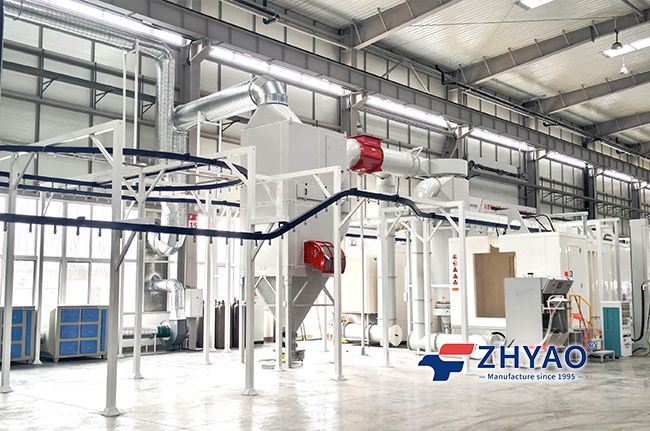

Continuous Powder Coating Line

A continuous powder coating line moves workpieces through the production process at a controlled and relatively constant rate.

The conveyor connects processes such as pretreatment, drying, powder spraying, curing, and cooling. Conveyor speed, hanger spacing, oven length, and spraying capacity therefore need to be designed as one system.

A continuous system is generally suitable when:

• Production volume is relatively high
• Products have similar dimensions and coating requirements
• Production runs are repetitive
• A stable production rhythm is required
• Automatic loading, spraying, and unloading are needed

For products such as metal furniture, aluminum profiles, electrical cabinets, and other standardized components, continuous conveying can provide a more consistent production flow.

The Conveyor Design Is Different

The main difference is not simply the type of conveyor. It is how the entire production flow is organized.

In a batch line, production can be adjusted between batches. Different workpieces can use different racks, loading positions, or process settings.

In a continuous line, the conveyor becomes the backbone of the system. Hanger spacing and conveyor speed directly affect production capacity.

When output requirements increase, the engineer may need to evaluate conveyor speed, hanger pitch, oven heating capacity, spray gun quantity, booth dimensions, and curing time together.

Product Mix Can Determine the Production Method

A factory producing many different products does not automatically need a batch line. Similarly, high production volume does not automatically mean a continuous line is required.

The key question is how similar the products are during production.

If workpieces have similar dimensions, weights, coating requirements, and curing conditions, continuous production is easier to organize.

If products vary significantly, batch processing can provide greater flexibility.

Color Changes Also Affect Line Design

Frequent color changes can influence the design of both batch and continuous systems.

In a continuous line, frequent color changes can interrupt the production rhythm and increase cleaning requirements, especially when different colors are processed through the same powder coating booth and recovery system.

For factories handling many colors with relatively small production batches, the powder booth and powder recovery system should therefore be considered together with the production method.

For high-volume production with fewer color changes, automatic continuous spraying can be easier to integrate into the overall production flow.

Batch vs Continuous: What Should Be Compared?

Instead of comparing the two systems only by equipment price, an engineering evaluation should consider:

Production volume
Workpiece dimensions and weight
Product variety
Daily production schedule
Color-change frequency
Required curing conditions
Available factory space
Automation requirements
Future production expansion

A batch system can provide more production flexibility, while a continuous system can provide a more consistent automated production flow. The appropriate choice depends on the actual production process.

How ZHYAO Approaches the Design

For a new powder coating project, ZHYAO starts with the workpieces and production requirements rather than selecting standard equipment first.

Workpiece dimensions, weight, material, production output, coating process, color changes, and factory layout are used to determine whether batch or continuous production is more appropriate.

The final system may include pretreatment, drying, powder coating booth, recovery system, curing oven, conveyor, cooling section, and automatic spraying equipment according to the project requirements.

For factories with changing production needs, a practical design can also combine manual operations with automatic equipment instead of making the entire line fully automatic.

FAQ

1. Is a batch powder coating line suitable for small production volumes?

It can be suitable when production volume is limited or product variety is high. The actual configuration should be determined according to workpiece size, coating requirements, and production schedule.

2. Is a continuous powder coating line suitable for high-volume production?

Continuous lines are often suitable for repetitive, higher-volume production because the conveyor maintains a consistent production flow. Conveyor speed, hanger spacing, oven capacity, and spraying capacity must be matched to the required output.

3. Can one powder coating line handle different products?

Yes, but the appropriate production method depends on how much the products differ. Products with similar coating and curing requirements are easier to process continuously, while significant differences in dimensions or process requirements may favor batch production.
