Complex metal workpieces often have a combination of large flat surfaces, welded joints, sharp edges, recessed areas, and narrow gaps. In an automatic coating line, these features can make uniform coating coverage difficult to achieve with automatic spray guns alone.

A practical solution is to combine automatic spraying with targeted manual touch-up. Automatic guns handle repeatable coating on accessible surfaces, while trained operators focus on areas that are difficult to reach or require additional coverage. The balance depends on the workpiece geometry, coating process, and quality requirements.

Why Complex Metal Parts Are Difficult to Spray Automatically

Automatic spray guns perform well when workpieces have consistent shapes and predictable spray paths. However, complex structures create several challenges.

• Weld seams and joints: Weld beads, corners, and intersecting surfaces can create uneven spray access and variations in film thickness.

• Edges and corners: Powder or liquid paint may deposit differently on edges than on broad surfaces. The result depends on the coating system, application settings, and part geometry.

• Recesses and narrow gaps: Deep cavities and internal corners can be difficult to reach. In electrostatic powder coating, the Faraday cage effect may further limit powder deposition in recessed areas.

• Irregular workpiece shapes: Different surface angles and varying distances from the spray guns can lead to inconsistent coverage along a single component.

These challenges do not mean automatic spraying is unsuitable. They mean that the spray process must be designed around the actual geometry, and some areas may require additional treatment.

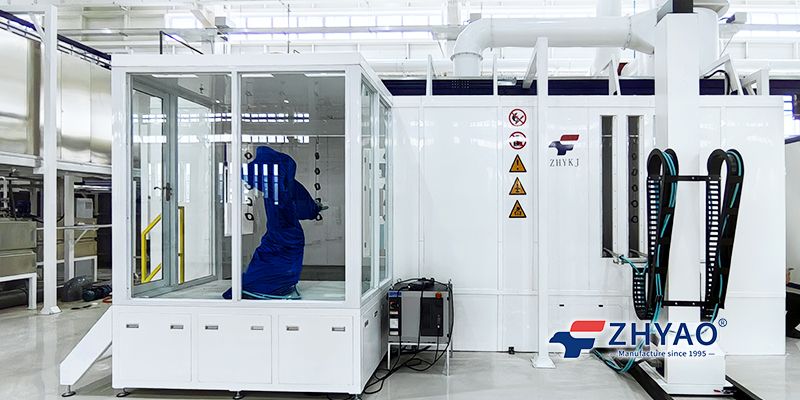

Automatic Spray Guns: Cover the Accessible Surfaces Consistently

The main role of automatic spraying is to provide repeatable coverage across surfaces that can be reached reliably by the selected spray equipment.

For workpieces with relatively consistent dimensions and production orientation, automatic guns can be positioned to cover broad faces, exposed sides, and other accessible areas. Gun angle, spray distance, overlap, conveyor speed, and the number of guns should be adjusted according to the workpiece and coating requirements.

For more complex parts, multiple gun positions or different spray directions may improve coverage. The workpiece may also need a suitable hanger arrangement so that important surfaces remain accessible during spraying.

However, adding more guns does not guarantee complete coverage. Deep recesses, shielded surfaces, and closely spaced structural members may remain difficult to coat because of physical access or electrostatic effects.

The goal is to automate the repeatable work first, rather than assume every surface can be coated equally well in a single pass.

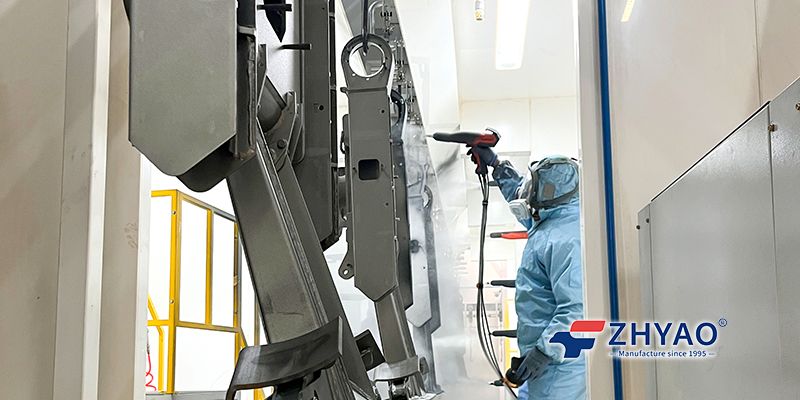

Manual Touch-Up: Focus on Welds, Edges, and Recessed Areas

Manual spraying complements automatic application by allowing an operator to adjust the spray angle, distance, and movement according to local geometry.

The specific method depends on the coating system and the area being coated.

• Weld seams and joints: Apply additional coating where the automatic spray pattern does not provide the required coverage. The operator should pay particular attention to intersecting surfaces and irregular weld profiles.

• Edges and corners: Check whether the specified coating thickness and coverage are achieved. Additional application may be necessary, but excessive buildup should be avoided.

• Recesses and internal corners: Use an appropriate spray angle and controlled movement to reach areas that are shielded from the automatic guns. For powder coating, the operator may need to adjust the application technique to reduce the effects of the Faraday cage.

• Areas behind structural members: Inspect surfaces that are shadowed by other parts of the workpiece. If they cannot be reached adequately by the automatic system, manual application or a revised spraying arrangement may be required.

Manual touch-up should not be treated as an unrestricted second coat over the entire workpiece. Its purpose is to address identified coverage limitations while maintaining the required film thickness and finish.

How Automatic Spraying and Manual Touch-Up Work Together

A practical production process starts by identifying which surfaces can be coated reliably by automatic guns and which areas need additional attention.

The workpiece then enters the automatic spray zone, where the guns cover the accessible surfaces under controlled conditions. After automatic application, an operator checks the designated difficult areas and performs targeted touch-up where necessary. The workpiece then proceeds to the next stage according to the coating process.

For powder coating, any manual application must be coordinated with the automatic spraying and powder recovery arrangements. Operators should also follow the applicable electrostatic equipment and combustible-dust safety requirements.

The division of work can be summarized as follows:

This arrangement can reduce the amount of work that must be performed manually without relying on automatic spraying to solve every geometric challenge.

The Spray Line Must Be Designed Around the Workpiece

The effectiveness of a combined spraying process depends on more than the choice of spray guns. Workpiece dimensions, hanging orientation, spacing, production speed, and operator access all influence the result.

For example, a welded steel frame may have large accessible faces that are suitable for automatic spraying, while its internal corners and intersecting members need manual attention. If the frame is hung in an unsuitable orientation, some surfaces may be shielded during automatic spraying and remain difficult to reach even during touch-up.

Before finalizing the line design, it is useful to evaluate representative workpieces and test the proposed spraying arrangement. This helps establish gun positions, identify areas requiring manual intervention, and determine whether the expected production rate is realistic.

For products with widely varying geometries, the balance between automation and manual work may need to be adjusted for different product families rather than using one fixed configuration for every part.

ZHYAO develops customized coating line solutions based on workpiece geometry, coating requirements, and production targets. By coordinating automatic spray equipment, manual touch-up stations, workpiece conveying, and the overall process layout, the system can be designed to handle complex metal parts more practically.

FAQ

1. Can automatic spray guns completely cover complex metal workpieces?

Not in every case. Coverage depends on workpiece geometry, spray access, gun positioning, and the coating process. Deep recesses, shielded surfaces, and certain internal corners may require manual touch-up or a different spray arrangement.

2. Does manual touch-up reduce the benefits of an automatic coating line?

No. When used selectively, manual touch-up complements automation by handling areas that are difficult to coat consistently with automatic guns. The automatic system still performs the repeatable majority of the spraying work where geometry permits.

3. How can manufacturers determine which areas need manual touch-up?

Evaluate representative workpieces after automatic spraying and inspect welds, edges, recesses, and shielded surfaces against the specified coating requirements. The results can guide gun positioning, hanger design, and the manual touch-up procedure.
