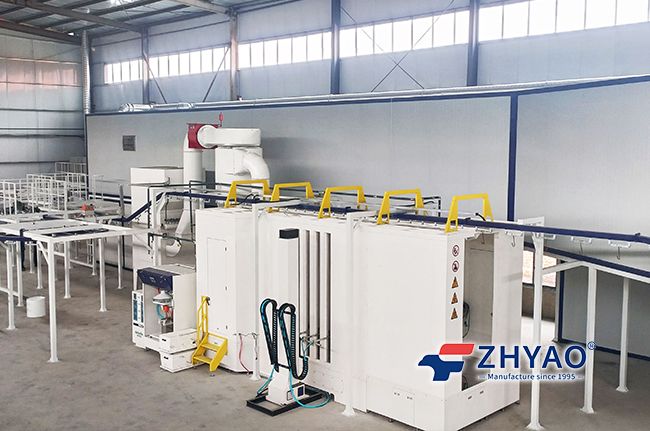

Automated Powder Coating Line by ZHYAO: Complete Guide to Industrial Powder Coating Automation

Manufacturers across industries are increasingly adopting automated powder coating lines to improve coating consistency, production efficiency, and process control.

An automated powder coating line is not simply a combination of spraying equipment and ovens. It is an integrated production system that connects surface preparation, powder application, curing, material handling, and control technology into a continuous coating process.

With years of experience in coating equipment engineering, ZHYAO designs customized automated powder coating solutions based on different products, production requirements, and factory conditions.

What Is an Automated Powder Coating Line?

An automated powder coating line is a complete industrial coating system designed to automatically process metal products through multiple coating stages.

Unlike manual powder coating operations, automated systems use mechanical transportation, automatic spraying equipment, and intelligent control systems to achieve stable and repeatable coating results.

A typical automated powder coating line includes:

Pretreatment system

Drying system

Conveyor system

Automatic powder spraying system

Powder recovery system

Curing oven

Electrical control system

These components work together to create a complete powder coating production workflow.

How Does an Automated Powder Coating Line Work?

1. Pretreatment Process

Surface preparation is the foundation of powder coating quality.

Before powder application, products usually pass through cleaning and chemical treatment processes to remove contaminants and improve coating adhesion.

Common pretreatment methods include:

Spray pretreatment

Dip pretreatment

Multi-stage cleaning

Conversion coating treatment

A properly designed pretreatment system helps improve corrosion resistance and coating performance.

2. Automated Conveyor System

The conveyor system connects each production stage.

Depending on product requirements, manufacturers may use:

Overhead chain conveyors

Ground conveyors

Accumulation conveyor systems

The conveyor design considers:

Product weight

Product dimensions

Production speed

Loading method

Proper material handling design is essential for stable continuous production.

3. Automatic Powder Spraying Process

The spraying section is the core of the automated powder coating line.

An automatic powder coating system normally includes:

Automatic spray guns

Reciprocators

Powder supply equipment

Spray booth

Recovery equipment

Automatic spraying helps maintain consistent powder coverage and reduces coating variation between different batches.

For complex products, automatic spraying can be combined with manual inspection or touch-up areas.

4. Powder Recovery and Recycling

Powder recovery is an important part of modern powder coating equipment.

During spraying, not all powder particles attach to the product surface. Recovery systems collect unused powder and improve material utilization.

Cyclone separators

Filter recovery units

Powder recycling systems

The recovery design depends on production requirements and color change frequency.

5. Curing Process

After spraying, coated products enter the curing oven.

The curing process melts and cross-links the powder coating material to form the final protective coating layer.

Common oven designs include:

Tunnel curing ovens

Batch curing ovens

The oven system must be designed according to:

Product size

Powder type

Production output

Temperature requirements

Key Components of an Automated Powder Coating System

Powder Coating Booth

The powder booth provides a controlled environment for spraying operations.

Its design affects:

Powder containment

Operator safety

Recovery efficiency

Color change operation

Automatic Powder Spraying Equipment

Automatic spray equipment improves coating consistency through controlled movement and powder output.

The system can be configured according to:

Product geometry

Required coating thickness

Production speed

Intelligent Control System

Modern powder coating automation systems use PLC control technology to coordinate different equipment sections.

The control system manages:

Conveyor operation

Oven temperature

Equipment status

Production parameters

This improves operational stability and monitoring capability.

Benefits of Using an Automated Powder Coating Line

Improved Coating Consistency

Automation reduces differences caused by manual spraying operations.

Manufacturers can achieve more stable:

Surface appearance

Coating thickness

Production quality

Higher Production Efficiency

Continuous automated production reduces unnecessary handling and improves workflow efficiency.

This is especially valuable for manufacturers producing large quantities of similar products.

Better Process Control

Automation allows manufacturers to monitor and adjust important production parameters.

This helps maintain stable coating conditions during long-term operation.

Reduced Material Waste

Efficient powder recovery systems allow unused powder to be collected and reused, reducing waste during production.

Applications of Automated Powder Coating Lines

Automated powder coating lines are widely used in industries including:

Aluminum Profiles

For architectural and industrial aluminum components.

Electrical Enclosures

For control cabinets, electrical boxes, and metal housings.

Metal Furniture

For chairs, tables, shelves, and commercial furniture.

Automotive Components

For metal parts requiring durable protective coatings.

Industrial Equipment

For machinery components and fabricated metal products.

How ZHYAO Designs Automated Powder Coating Solutions

Every production environment has different requirements.

When designing an automated powder coating line, ZHYAO considers:

Product characteristics

Required production capacity

Coating specifications

Factory layout

Future expansion requirements

The engineering process includes:

Understanding customer production requirements

Designing coating process flow

Selecting suitable equipment configuration

Manufacturing and system integration

Providing technical support

Conclusion

An automated powder coating line is a complete industrial solution that combines coating technology, automation equipment, and process control.

From pretreatment and powder spraying to curing and material handling, every section affects final coating quality and production efficiency.

With professional engineering experience and customized system design, ZHYAO provides automated powder coating solutions for manufacturers looking to build or upgrade their coating production facilities.

FAQ

What is an automated powder coating line?

An automated powder coating line is an integrated production system that automatically completes surface preparation, powder spraying, curing, and material transportation processes.

What equipment is required for a powder coating automation system?

A complete system usually includes pretreatment equipment, conveyors, spray booths, automatic spray machines, powder recovery units, curing ovens, and control systems.

Can an automated powder coating line be customized?

Yes. Automated powder coating systems are normally designed according to product size, production capacity, coating requirements, and factory conditions.

What industries use automated powder coating lines?

They are widely used in aluminum profiles, electrical cabinets, furniture, automotive parts, hardware products, and industrial equipment manufacturing.
