A coating production line is a complete manufacturing system designed to apply protective or decorative coatings to metal products. Whether the process involves powder coating, liquid painting, electrophoretic coating (E-coating), or dip coating, every stage relies on specialized equipment working together to achieve consistent quality and production efficiency.

Many manufacturers planning a new coating line often ask, "What equipment does a coating production line include?" The answer depends on the product, production capacity, and coating process, but most industrial coating lines share several essential systems.

So, what equipment does a complete coating production line include? Let's explore the essential systems that work together to deliver efficient and consistent coating results.

What Is a Coating Production Line?

A coating production line is an integrated system that transports workpieces through multiple processing stages, including surface preparation, coating application, curing, cooling, and inspection.

Depending on the production requirements, a coating line may be:

Manual

Semi-automatic

Fully automatic

Regardless of the level of automation, the objective remains the same: to produce a durable, uniform, and high-quality coating while maintaining efficient production.

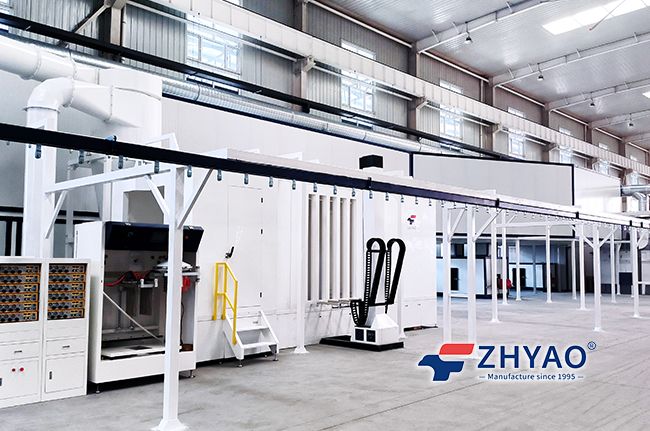

（Powder Coating Line for Electrical Control Cabinets – Baoding Boyuan Group, China）

1. Loading System

Every coating process begins with loading the workpieces onto the conveyor.

Loading methods may include:

Manual loading

Automatic loading

Robotic loading systems

The loading method should match the product size, weight, and production volume to ensure smooth material flow throughout the production line.

2. Pretreatment System

Pretreatment is one of the most important stages in any coating production line.

Before coating, contaminants such as oil, dust, rust, and oxidation must be removed to ensure proper coating adhesion.

A typical pretreatment process may include:

Degreasing

Water rinsing

Pickling

Phosphating

Zirconium or nanoceramic treatment

DI water rinsing

For products requiring high corrosion resistance, pretreatment quality is often just as important as the coating itself.

3. Drying Oven

After pretreatment, moisture remaining on the workpiece must be completely removed before coating.

The drying oven helps to:

Eliminate residual moisture

Improve coating adhesion

Reduce coating defects

Increase production consistency

Heating methods commonly include electricity, natural gas, LPG, or diesel, depending on local energy availability and operating costs.

4. Spray Booth

The spray booth is where the coating material is applied to the workpiece.

For powder coating production lines, the booth is designed to:

Contain powder overspray

Maintain a clean working environment

Improve powder utilization

Support powder recovery

For liquid painting lines, the booth controls airflow and paint mist while providing a safe and stable spraying environment.

The booth design depends on product dimensions, coating material, production capacity, and color change frequency.

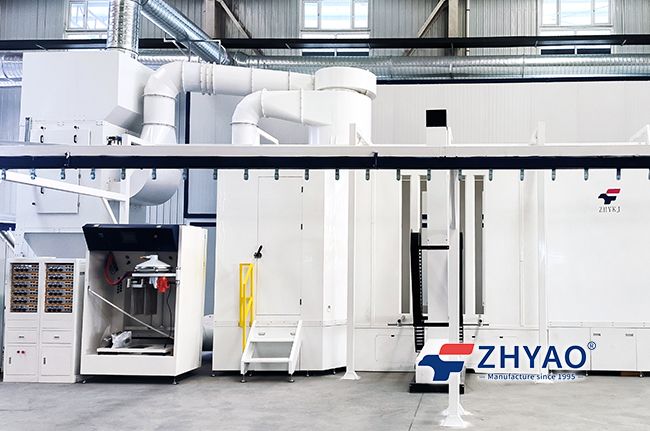

（Large Cyclone Powder Coating Booth for Baoding Boyuan Group）

5. Coating Application Equipment

The application equipment determines how the coating is deposited on the workpiece.

For powder coating systems, common equipment includes:

Electrostatic powder spray guns

Automatic spray guns

Manual spray guns

Powder feed center

Powder pumps

Reciprocators

Robotic spraying systems

Liquid coating systems may use:

Air spray guns

Airless spray systems

Electrostatic liquid spray guns

Automatic painting robots

Selecting the appropriate application equipment helps improve coating uniformity and production efficiency.

6. Powder Recovery or Paint Collection System

Not all coating material reaches the workpiece during spraying.

To improve material utilization and reduce waste, coating production lines incorporate recovery or collection systems.

For powder coating, common systems include:

Cyclone separators

Cartridge filter recovery systems

Powder recycling units

For liquid painting, systems may include:

Water curtain booths

Dry filter booths

Paint mist treatment equipment

Efficient recovery systems help reduce operating costs while maintaining a cleaner production environment.

7. Curing or Drying Oven

Once the coating has been applied, the workpieces move into the curing or drying oven.

For powder coating, the oven melts and cures the powder, creating a durable and protective finish.

For liquid painting, it accelerates drying and improves coating performance.

Modern industrial ovens often feature:

Hot air circulation

Multi-zone temperature control

High-performance insulation

Automatic temperature monitoring

Stable temperature distribution is essential for achieving consistent coating quality.

8. Conveyor System

The conveyor system connects every stage of the coating production line into a continuous workflow.

Common conveyor types include:

Overhead chain conveyors

Power and free conveyors

Floor conveyors

Skid conveyors

The conveyor design depends on:

Product dimensions

Product weight

Production speed

Factory layout

A well-designed conveyor system improves production efficiency while reducing manual handling.

9. Cooling Section

After curing, coated products enter the cooling section before unloading or packaging.

Cooling methods may include:

Natural cooling

Forced-air cooling

Cooling tunnels

Proper cooling protects the coating from damage during handling and allows it to reach its final hardness.

10. Electrical Control System

Modern coating production lines rely on intelligent control systems to coordinate all equipment.

Typical functions include:

PLC control

Touchscreen HMI

Temperature monitoring

Conveyor speed control

Equipment diagnostics

Alarm systems

Production data management

An advanced control system helps improve operational stability, reduce downtime, and simplify daily operation.

Optional Equipment for Customized Production Lines

Different industries often require specialized equipment to meet unique production requirements.

Optional systems may include:

Automatic loading and unloading systems

Robotic handling equipment

Online coating thickness measurement

Automatic color change systems

Air compressor systems

Environmental protection equipment

Vision inspection systems

These options can improve automation, production flexibility, and quality control.

How to Choose the Right Equipment Configuration

Every coating production line should be designed according to actual manufacturing requirements rather than using a standard configuration.

Important factors include:

Product dimensions and weight

Coating type

Daily production capacity

Factory layout

Energy supply

Required level of automation

Future expansion plans

A customized equipment configuration can improve production efficiency while helping manufacturers optimize long-term operating costs.

Why Equipment Integration Matters

The performance of a coating production line depends not only on the quality of each individual machine but also on how well every system works together.

A properly integrated production line can provide:

Stable coating quality

Smooth material flow

Higher production efficiency

Reduced energy consumption

Easier maintenance

Greater production reliability

Careful equipment selection and system integration are key to achieving long-term manufacturing performance.

Conclusion

A complete coating production line consists of much more than a spray booth and an oven. From pretreatment and drying to coating application, curing, conveying, cooling, and intelligent control, each piece of equipment plays an essential role in the overall production process.

Understanding the function of every system helps manufacturers choose a coating production line that matches their products, production goals, and future development plans. With the right equipment configuration, businesses can improve coating quality, enhance production efficiency, and support sustainable manufacturing.
