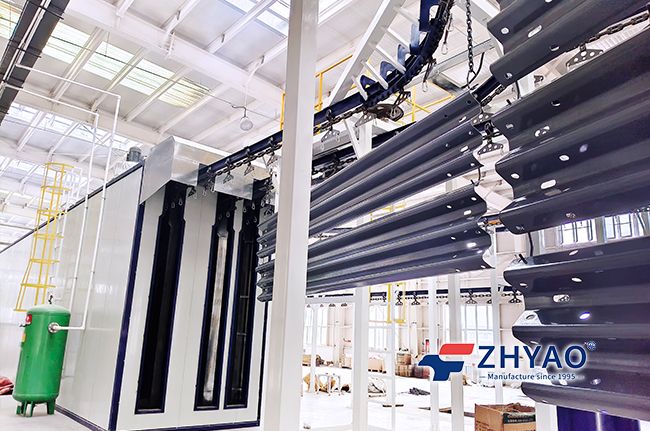

Understanding the Structure of a Complete Powder Coating and Painting Line

A powder coating or painting production line is an integrated system designed to apply protective and decorative coatings on metal or plastic parts. Widely used in industries such as automotive, home appliances, construction materials, and machinery, a well-designed coating line ensures high-quality surface finishes, improved corrosion resistance, and long-term durability.

Below are the main components that make up a modern industrial coating line.

1. Pre-Treatment Equipment

The pre-treatment section is the foundation of the coating process. It removes dust, oil, rust, and oxidation from the workpiece surface to enhance coating adhesion and surface quality.

Common pre-treatment equipment includes multi-station spray pre-treatment machines, immersion tanks, and shot blasting systems. A proper pre-treatment process is essential to achieve a flawless final coating.

2. Coating Application System

This is the core part of the production line. It includes spray booths (wet painting or powder coating types), automatic or manual spray guns, painting robots, and paint or powder feeding systems.

Automated coating systems ensure uniform coverage, reduce material waste, and improve consistency. Depending on the application, coating can be performed by manual operators or robotic systems for high precision and efficiency.

3. Drying and Curing Ovens

After coating, the product must be dried or cured to achieve a strong, smooth, and durable finish.

Common equipment includes hot air ovens, tunnel furnaces, and infrared or gas curing ovens. The selection depends on the coating type (liquid paint or powder) and the required curing temperature and time.

4. Conveyor System

The conveyor system connects all stages of the production line and ensures smooth, continuous material flow.

Typical systems include overhead conveyors, floor conveyors, and chain-driven systems. A stable and adjustable conveyor system helps synchronize production speed and reduce handling time.

5. Electrical Control System

The control system is the “brain” of the entire line. Using PLC (Programmable Logic Controllers) or smart automation software, it monitors temperature, speed, timing, and safety interlocks across all processes.

An intelligent control system enhances efficiency, minimizes errors, and supports data tracking for production management.

6. Heating Source System

The heat source provides energy for drying and curing equipment.

Common energy options include electric heating, natural gas, diesel, and steam systems. The choice depends on local energy availability and cost-effectiveness.

7. Exhaust and Environmental Treatment System

During spraying and curing, volatile organic compounds (VOCs) and powder dust are produced. To meet environmental regulations, a waste gas treatment system—including filters, activated carbon absorbers, and catalytic incinerators—is essential to ensure eco-friendly operation.

8. Auxiliary Equipment

Depending on production needs, auxiliary systems can include leveling stations, cooling tunnels, quality inspection systems, and packaging units.

These additions help ensure consistent coating quality and streamline the entire production flow.

Why Choose a Complete Coating Line?

A well-integrated coating line not only enhances production efficiency and product quality, but also helps reduce labor costs, energy consumption, and environmental impact. For manufacturers seeking automation and long-term reliability, investing in a professional powder coating or painting line is a cost-effective solution.
