Project Name: Boyuan Group Electrical Cabinet Powder Coating Line Project
Customer: Boyuan Group
Project Location: Baoding, Hebei, China
Industry: Electrical Equipment Manufacturing
Project Type: Electrical Cabinet Powder Coating Line
As the demand for consistent surface finishing increases in electrical equipment manufacturing, powder coating has become an important process for protecting metal cabinets and improving their appearance.
Boyuan Group required a stable coating production system for electrical cabinets and related sheet-metal components.
Based on the customer's workpiece characteristics and production requirements, ZHYAO designed and supplied a customized electrical cabinet powder coating line to integrate pretreatment, powder spraying, curing, cooling, and material handling into a continuous production process.
Electrical cabinets and control cabinet components are mainly manufactured from sheet metal, with relatively large surfaces and different structural configurations. The coating system needs to provide uniform surface coverage while maintaining stable production efficiency.
The main requirements of the project included:
Consistent powder coating quality
Uniform coating coverage on electrical cabinet components
Stable powder curing performance
Efficient continuous production
Reduced dependence on manual spraying
Improved powder utilization
Reliable material conveying between coating processes
A production line layout suitable for the customer's factory
To meet these requirements, ZHYAO provided a complete automatic powder coating line for electrical cabinets, integrating the major coating processes into one continuous production system.
The production line includes:
Automatic conveyor system
Surface pretreatment system
Drying section
Automatic electrostatic powder coating booth
Powder recovery system
Powder curing oven
Cooling section
Intelligent electrical control system
The conveyor system transports the electrical cabinet components through each process at a controlled speed. This creates a continuous workflow and helps maintain consistent processing conditions.
After pretreatment and drying, the workpieces enter the automatic powder coating booth. The electrostatic powder spraying system applies powder to the metal surfaces, while the recovery system collects overspray to improve powder utilization and reduce material waste.
After spraying, the coated components enter the curing oven. The hot-air circulation system helps maintain a stable heating environment, allowing the powder coating to cure properly and form the required coating performance.
After curing, the components pass through the cooling section before moving to subsequent assembly or inspection processes.
The automated spraying system provides stable coating parameters and reduces variations caused by manual spraying. This helps achieve more consistent coating thickness and surface appearance across electrical cabinet components.
The automatic conveyor and integrated coating processes allow workpieces to move continuously from pretreatment to curing. This improves production organization and reduces unnecessary handling between individual processes.
The powder coating line is designed around the characteristics of electrical cabinets, control panels, switch cabinet components, and other sheet-metal parts. The system can be configured according to workpiece dimensions, weight, production volume, and coating requirements.
During electrostatic spraying, some powder becomes overspray. The powder recovery system collects this material and supports appropriate reuse, helping reduce powder consumption and production waste.
The curing oven uses controlled heating and hot-air circulation to provide a more uniform curing environment. Stable curing conditions are important for coating adhesion, surface appearance, hardness, and long-term coating performance.
Automation of conveying and powder spraying reduces the amount of manual handling and spraying work required. Operators can focus more on production monitoring, workpiece loading and unloading, and quality inspection.

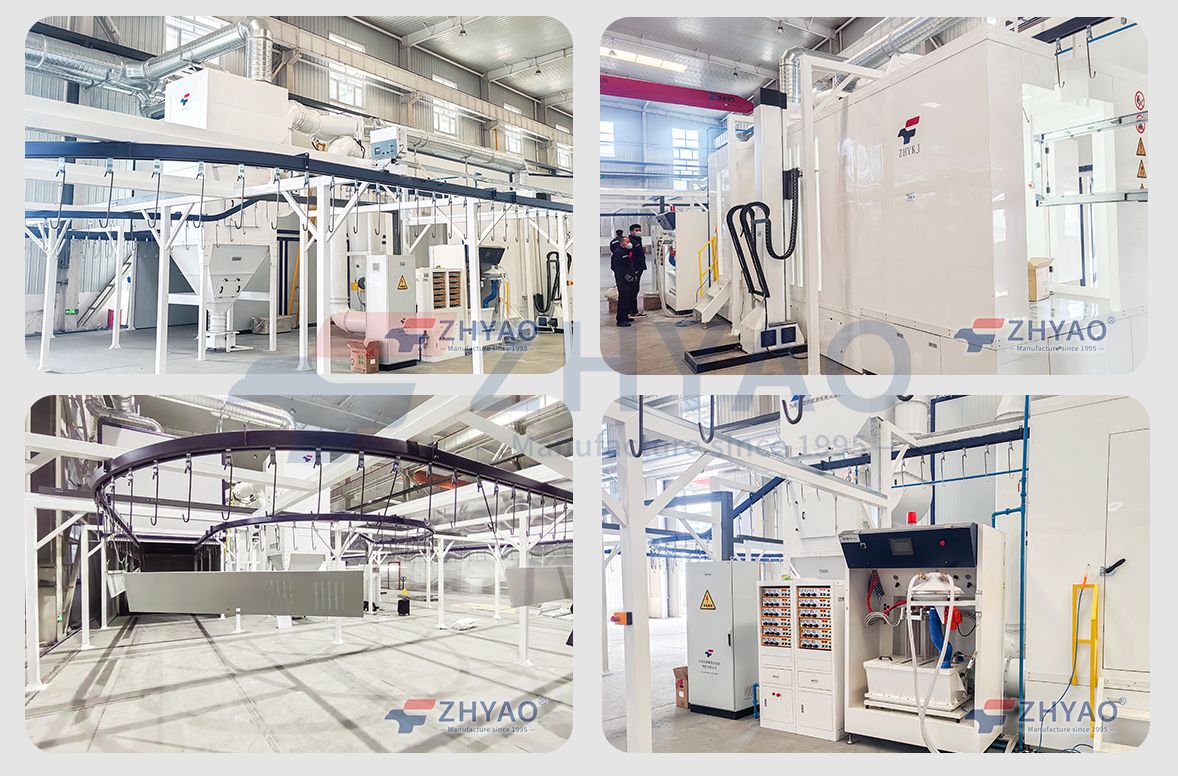

The Boyuan Group electrical cabinet powder coating line was successfully installed and commissioned at the customer's production facility in Baoding, Hebei.
The integrated production system provides a more organized coating workflow covering pretreatment, drying, powder spraying, powder recovery, curing, and cooling.
With automated conveying and spraying, the line supports more consistent coating quality and continuous production of electrical cabinet components.
The powder recovery system also helps improve material utilization, while the controlled curing process provides stable coating performance.
The customized production line provides Boyuan Group with a suitable coating solution for its electrical equipment manufacturing process and supports further production development.
ZHYAO specializes in the design and manufacture of customized industrial coating equipment and complete coating production lines.
Our product portfolio includes:
Automated Powder Coating Lines
Electrical Cabinet Powder Coating Lines
Liquid Painting Lines
E-Coating Lines
Dip Coating Lines
Conveyor Systems
Powder Curing Ovens
Pretreatment Systems
Powder Recovery Systems
From process design and equipment manufacturing to installation, commissioning, and after-sales support, ZHYAO provides coating solutions based on the customer's workpieces, production capacity, factory layout, and automation requirements.
For an electrical cabinet powder coating line, equipment configuration should be determined according to factors such as cabinet dimensions, material, production output, required coating quality, conveyor speed, color-change frequency, and available factory space.
For a customized powder coating line, ZHYAO's engineers evaluate the following information:
Factory Dimensions
Production Output — 1 day = 8 hours, 1 month = 30 days
Material of Workpieces
Workpiece Dimensions
Workpiece Weight
Color Change Demand and Frequency
This information is used to determine the appropriate pretreatment process, conveyor system, spray booth configuration, powder recovery method, curing oven size, and overall production line layout.
Looking for a powder coating line for electrical cabinets, control panels, switch cabinets, or other sheet-metal components? Contact ZHYAO for a customized coating solution.
